The Brig

$14.95

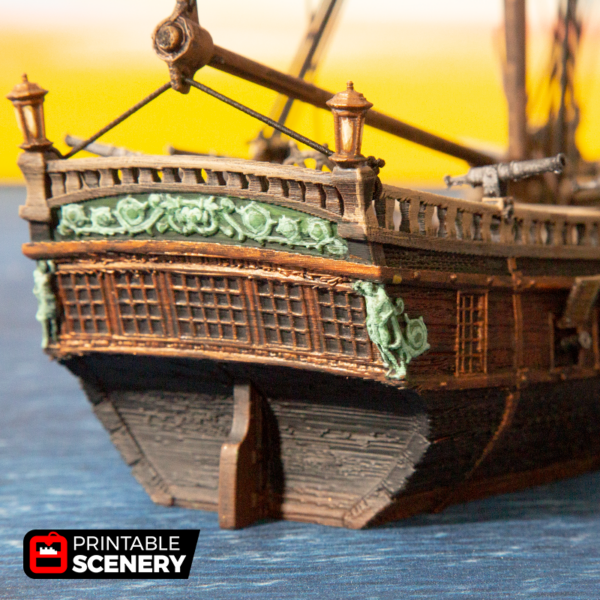

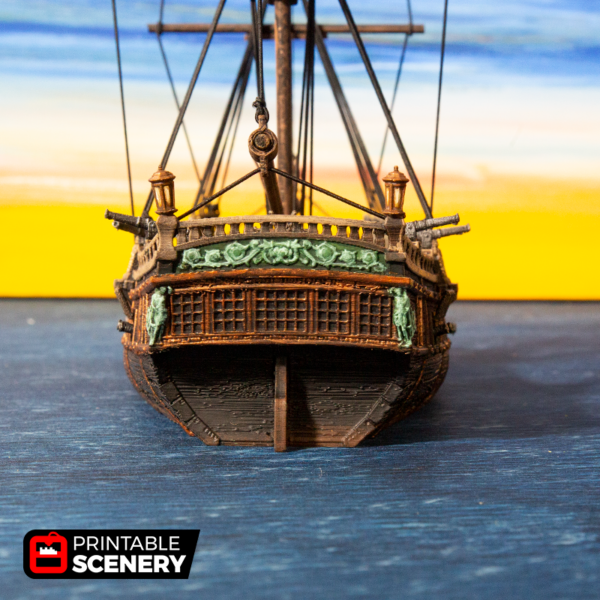

“Highly maneuverable and armed to the teeth, the sight of a brig near coastal waters is a sure sign of an imminent raid.”

The Brig comes in two versions: ballista and cannon. Included in the .ZIP file are: separate deck layouts, interior fittings such as barrels and boxes, a removable ‘wake’ that simulates ship movement, cannons, ballista, and rigging clips. The separate decks can be used to simulate movement within the ship.

The brig is designed to be printed at .2 with supports switched off, while the fittings should be printed at .1.

To rig the brig, check out the general Rigging Guide.

This product is part of the ADD-ON The Lost Islands Complete or Add-On The Lost Ships. Please log in if you backed the campaign.

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

 Updates:

  • 17 May 2018 – Ballista version added.
  • 30 May 2018 -1.3 Scale of Brig Wheel adjusted.

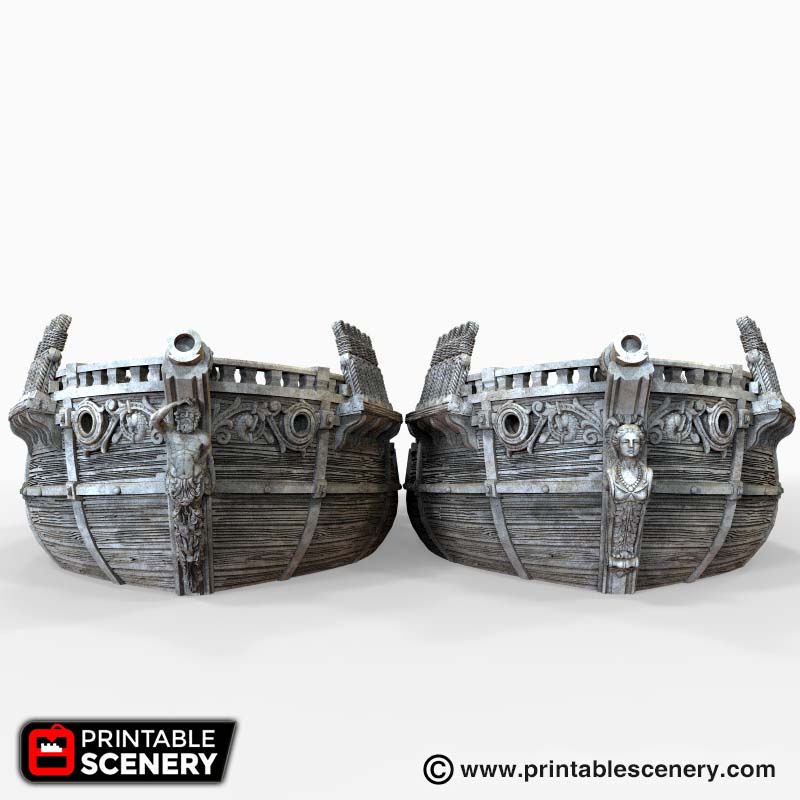

  • 8 October 2018 – 1.3 Changeable figureheads of Neptune and the Queen added.
  • Add supports touching build plates if you get too much stringing on the lower section of the hull or if using Cura select “make overhang printable”.

Notes:

  • The Brig Interior Lower Deck has a three part option for small printers.
  • You will need 6mm (1/4”) and 4mm (3/16”) dowel for the masts, and black elastic string for the rope.
  • Right-click on the image below and “Save As” to download the reference sheet for this pack.

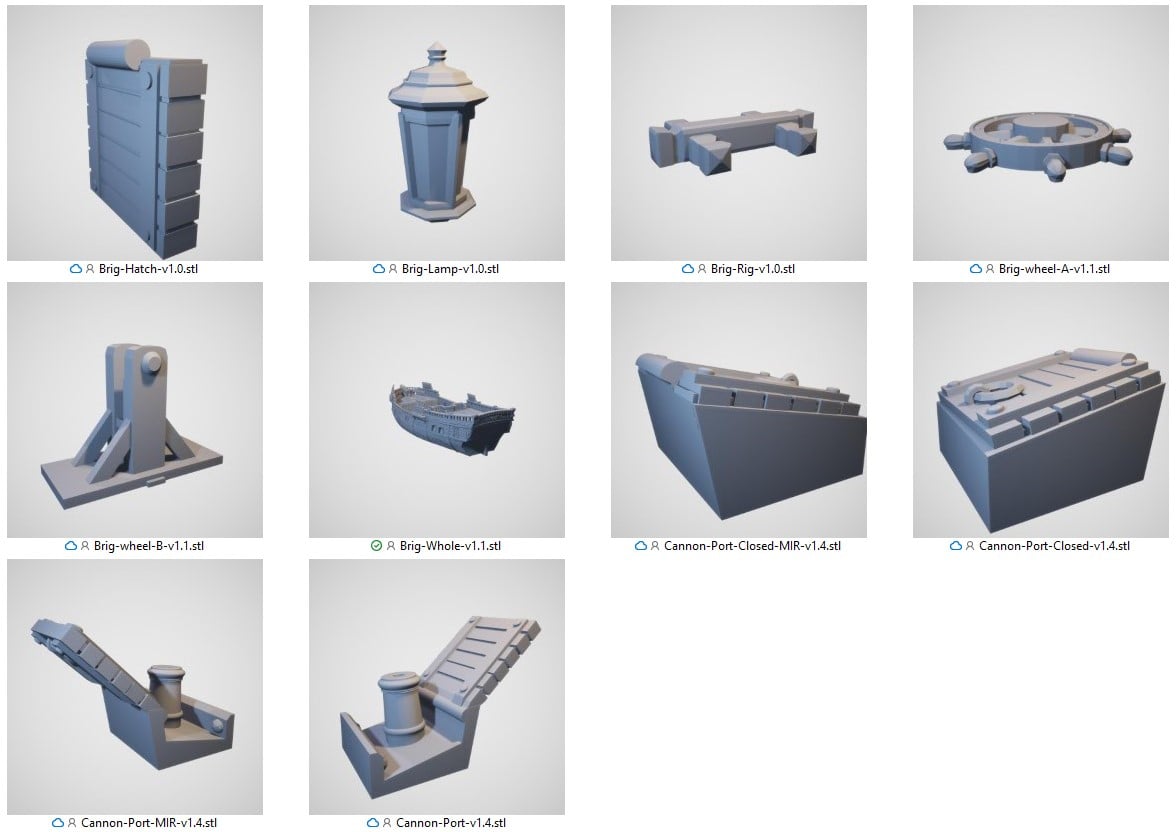

Reference sheet for medium printers

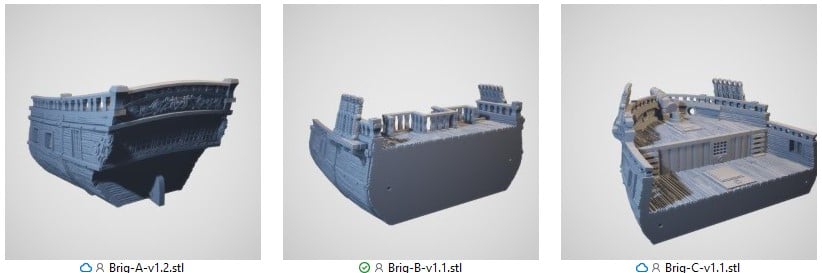

Reference sheet for Small printers

Rigging

You will need 6mm (1/4 inch) and 4mm (3/16 inch) dowel for the masts and black elastic string for the rope.

Reference sheet for The Brig Wake

Reference sheet for The Brig Interior

Reference Sheet for Ballista version

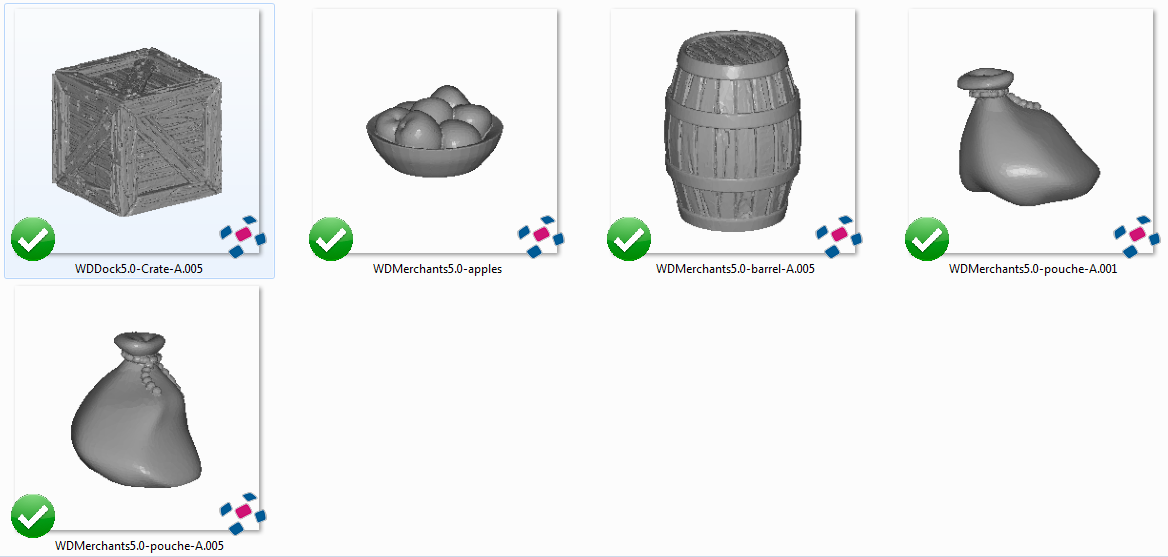

Reference Sheet for Fittings



Additional information

Infill

20%

Supports

Prints without Supports, Supports touching buildplate

Layer Height

.2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)

Q & A

  1. Avatar

    Timothy Reese (verified owner)

    This is great! Are you planning to upload a ballista version, similar to The Sloop?

    • Avatar

      Jo Boorer

      Ballista version of the Brig just uploaded

  2. Avatar

    rock_marci (verified owner)

    how high are masts?

    • Avatar

      Jo Boorer

      There is a pic in The Brig gallery with mast measurements on it.

  3. Avatar

    Timothy Reese (verified owner)

    I know you’re all in a tidal wave of work to get the KS out the door, so I’ll leave this here. It’d be great to have a ballista version of the open hatch insert, where instead of a cannon it’s a ballista head.

  4. Avatar

    Jaime van Kessel (verified owner)

    Will there also be ballista versions of the board cannons / side ports?

    • Avatar

      Matt Barker

      For the side ports, we have the closed gun port available.

  5. Avatar

    Peter Santucci (verified owner)

    I printed a hull and it looks great. However, while planning the rigging; I did not see any rope hole under the figurehead or on the aft section. How best to attach?

    • Avatar

      Matt Barker

      I used a small steel pin to attach this, I was hesitant about making a hoop under their for the attachment it would have to be quite thick.

  6. Avatar

    Peter Santucci (verified owner)

    On the rigging diagram on the center mast the fitting marked Rig 5 is it actually supposed to be Rig 4?
    Thanks in advance.

    • Avatar

      Jo Boorer

      Thanks for pointing this out. This has now been corrected.

  7. Avatar

    Tim Manchester (verified owner)

    What is the part labelled “Brig Rig” for?

    • Sam Campbell

      Sam Campbell (verified owner)

      The Brig Rig sits into the 2 small slots on the deck at the base of the mast.

  8. Avatar

    bvitry (verified owner)

    Unable to find the STL files for the “Brig” from Printable Scenery for the block and tackle to complete the rigging.

    • Sam Campbell

      Sam Campbell (verified owner)

      The block and tackle is included in the hull print.

  9. Avatar

    rolf.arne (verified owner)

    In the lower interior of the Brig there are two grate hatches that seems to lead down to an even lower level that is not modeled. What are these suppose to represent and is it possible to get a version of the interior without these two hatches?

    • Avatar

      Matt Barker

      I added those because they are the bilge access. a place for cannon balls and pig iron
