Galleon

(23 customer reviews)

$24.95

The flagship of the Printable Scenery fleet, The Galleon is a ship that can be used in a fantasy or historical setting.

With 26 cannon ports, 4 masts, a beautiful figurehead and rear detail you can have it take pride of place towering above other warships on the roiling seas or on your display shelf. This ship is big, it has 4 vast interior decks where you can fight deck to deck skirmish or play hours of RPG adventure.

Fully rigged it’s 64cm (25″) long and 61 cm (24″) tall and you can rig it using a general Rigging Guide. This is the largest model Printable Scenery have designed. It comes with a removable ‘wake’ that simulates ship movement through the seas. It also comes with 3 front sections each with different figure heads so you can have a variety of vessels.

This product is part of the Add-On The Lost Ships. Please log in if you backed the campaign.

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

Whether fighting the vast undead scourge risen from Davey Jones’ locker or a foreign invasion force, this ship is a worthy leader for your war armada..

Updates:

  • 5 February 2019 – Small Printer option added.
  • 10 December 2020 – (version 2.0) Hull wood grain re-textured to prevent stringing.

Notes:

  • Right-click on the image below and “Save As” to download the reference sheet for this pack.
  • There is no ballista version.
  • Add supports touching build plates if you get too much stringing on the lower section of the hull or if using Cura select “make overhang printable”.
  • Reference sheets for Small Printer are included in the zip file.

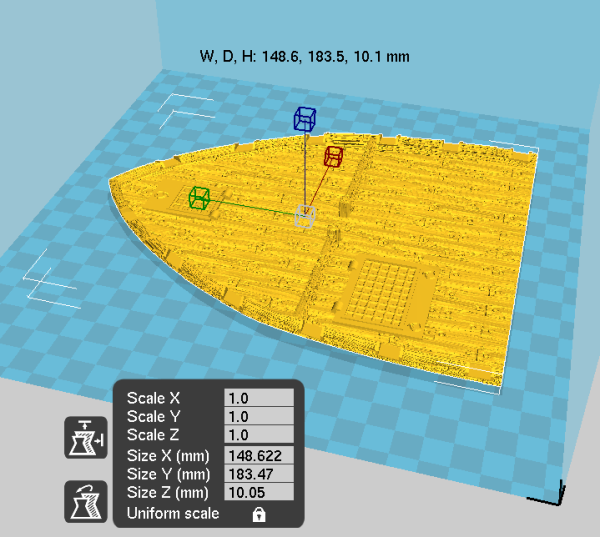

  • Product measurements can be found in the image gallery.

Galleon Reference





Galleon Interior





Fittings Reference





Galleon Rigging

You will need 6mm (1/4 inch) and 4mm (3/16 inch) dowel for the masts and black elastic string for the rope. You may need to sand the ends of the dowel to insert into the mast holes easily.

Wake Reference



Changeable Figureheads Reference

Additional information

Infill

20%

Supports

Prints without Supports, Supports touching buildplate

Layer Height

.2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)

23 questions for Galleon

  1. Avatar

    truongjimmyl (verified owner)

    What is the difference between cannon port galleon MIR and cannon port galleon?

    • Sam Campbell

      Sam Campbell (verified owner)

      Because they are not straight they are designed to fit easier in the hatches along the side of the ship. One set for one side and mirrored for the other side.

  2. Avatar

    ben1 (verified owner)

    Are there plans to release a small printer version of the galleon? The Fluyt is nice and all but… this is the capstone!

  3. Avatar

    Chrismeekings (verified owner)

    As above, the Galleon-Mid-Front v1.1 is ever so slightly too big for the build plate of a Flashforge CreatorPro. Any chance this could be cut into 2 sections to fit?

    • Avatar

      Matt Barker

      We can make a version of this cut into smaller parts. I’ll add it to the to-do list

  4. Avatar

    tamarack928 (verified owner)

    silly question – when does the interior come into play? Not sure if I need to print those pieces out.

    • Sam Campbell

      Sam Campbell (verified owner)

      The interiors are for RPG combat within the ship. To use the ship as is you do not need to print those pieces.

  5. Avatar

    shawn.schultz (verified owner)

    What is the best way to assemble the model after printing? I’m referring to the body of the ship itself, not the rigging. I see the small holes in each model, but they aren’t very deep. Also, Are you using Super glue or something else?

    Thanks!

    • Sam Campbell

      Sam Campbell (verified owner)

      The guide holes are there for filament or wire to be inserted to align the parts together. You can also drill the holes deeper to get a sturdier connection. You can either glue using plastic cement, superglue or chloroform (after
      cleaning off any whisping if you need to).

  6. Avatar

    mrnickdwill

    Hey!

    I’m in love with your ships, I’ve just finished printing the Black Ship and following your painting suggestions, it looks amazing. Can you tell me what process you used here? Paints used and etc?

    • Sam Campbell

      Sam Campbell (verified owner)

      Painting the Galleon
      Primed in Leather Brown.
      Wood: Army Painter Oak Brown, Vallejo Khaki Brown, Army Painter Arid Earth and Army Painter sepia shade.
      Metal bracing we used Army Painter Rough Iron, drybrushed Army Painter plate mail metal.
      Rope: Army Painter Leather brown and Arid Earth
      Miscellaneous detailing was done with Army Ppainter skeleton bone, angel green, goblin green, deep blue, dragon red and lava orange and maybe a few other colours.

  7. Avatar

    James Gordon (verified owner)

    Is there a timeframe as to when a ‘small print bed’ version will be completed? I have a FFFinder and some of the pieces are to big. Thanks.

    • Sam Campbell

      Sam Campbell (verified owner)

      This is being worked on and will be available soon.

  8. Avatar

    enaudible (verified owner)

    Thanks for the small printer option!

    Can you please also add a small printer option for the interiors?

    • Sam Campbell

      Sam Campbell (verified owner)

      There is a Small printer subfolder in the Interiors Folder

  9. Avatar

    bill2 (verified owner)

    Is there any chance I could get a whole or just a 2 piece version of the Galleon? I lprefer single/whole print versions if possible.

    • Sam Campbell

      Sam Campbell (verified owner)

      Some of the pieces only print in certain orientations, it’s cut to print as well as to size.

  10. Avatar

    ben1 (verified owner)

    These balusters are the bane of my existence. I have yet to print any piece (small printer) without a failure on at least one of the balusters. It’s super frustrating since they’re all at the top end of the print (ie, hours in).

    • Avatar

      Matt Barker

      If your printer is not perfectly set up, then the thin uprights are always going to be an issue.
      There are several possible solutions:
      – Adjust the Z height exact.
      – Slow down the print speed at the top of the print.
      – Make sure your getting enough cooling so that the plastic isn’t soft as it builds the upright.
      – Add supports as a last resort

  11. Avatar

    paul6

    Looking at the rigging diagram, are the crows nests and the joints to offset the mast sections included in the print files?

    • Sam Campbell

      Sam Campbell (verified owner)

      Yes, All the rigging pieces, for crows nests and to join and offset the masts are included in a rigging folder when you purchase and download the product.

  12. Avatar

    johnmetta.com

    Hi, will this ship model actually float? I saw some of the pictures of another model floating for the original Kickstarter, but I wanted to make sure this one actually floats. I’d like to build it to put into a small pond I have. Thank you.

    • Sam Campbell

      Sam Campbell (verified owner)

      Yes the models will float if you have no holes, a thick enough exterior shell and your infill has air pockets.

  13. Avatar

    scott.grasse

    I see the total length of masts required but which mast pieces are 6mm and which are the 4mm?

    • Avatar

      Nicholas Jebson

      Hey Scott. The main masts are all 6mm and the cross beams are all 4mm. We used the same rigging across the entirety of the ship, so the 1mm is all you will need.

  14. Avatar

    scott.grasse

    What size string is recommended for the running rigging? The demo video only discusses the standing rigging which is 1 mm recommended. Thank you!

  15. Avatar

    David Hanley (verified owner)

    So is there a print guide for this beast?

    • Sam Campbell

      Sam Campbell (verified owner)

      If you click on additional information there are printer settings available.

  16. Avatar

    landsknecht1525 (verified owner)

    Will there be a full hull option? I was thinking it would be cool to print a smaller scale version of this and other ships you make for the new Oak & Iron game by Firelock Games. And, what would the recommended scale decrease be?

    • Sam Campbell

      Sam Campbell (verified owner)

      There is no Full hull version at the moment as the rear is cut separately for printing purposes.

  17. Avatar

    Gerald Behrendt (verified owner)

    Is something supposed to go into the two indentations on the lower rear piece of the ship? They’re sort of the same shape as the cannon ports, but not exactly and the closed cannon port pieces don’t fit into them.

    • Sam Campbell

      Sam Campbell (verified owner)

      The Cannon ports fit these, you may have to sand them as they are a snug fit.

  18. Avatar

    David Aleshire (verified owner)

    I print this not for DnD but as a model for my desk at work, and that being said, i have to cut the model down to 50 Percent size (which also helps when i want to print a resin version). However the main masts are easy since i can just use 1/8 inch instead of 1/4 inch, but the back masts are impossible to find dowels half the size of 3/16th inch (or a 2mm dowel). Would it be possible to make a version of this where all the mast holes are the same size (1/4th inch) so when i scale down to half size i can use all 1/8th inch dowels for the model?

    • Avatar

      Nicholas Jebson

      We can certainly add it to the updates board there David, we are currently going through and doing some updates on the ships so we might be able to slot that in when we update the Galleon.

  19. Avatar

    JonC (verified owner)

    Love the model; im also printing it more as a display piece rather than a game piece.

    I saw you mentioned specific orientations for printing; are those noted somewhere? The STLs seem to all be oriented horizontally (as in, flat and upright like the final ship will be sitting).
    Also, do any models require supports? I’ve managed to get through a few of them without supports; but since I’m trying to print all the models the same way (for layer consistency in the final full model), im just curious about that.

    thanks for the awesome model and all your help

    • Avatar

      Nicholas Jebson

      Each of the pieces should be per-oriented for the best possible print on an FDM printer, the majority of those being upright but with some (like the figureheads) oriented 90 degrees so as to print with no overhang. if you are worried about all the layer lines being in the same plane you could rotate those ones but you will definitely need supports on them if you do

  20. Avatar

    CashRockThunderMammal

    I *only* have resin printers (60mm x 120mm x 150mm). Has there already been a version made of these cut apart for things like typical SLA home printers?

  21. Avatar

    redbjork (verified owner)

    Hi
    The rigging diagram in this is very unclear.
    It does not mention the thickness of the dowels needed, only length.

    Measuring the printed holes starting from the bow I get.
    6.12mm diameter
    6.35mm diameter
    6.35mm diameter
    4.06mm diameter
    4.12mm diameter

    Common dowels to get are at 4mm, 6mm, 8mm.
    6.4 is uncommon. And it´s clear that at the very least that in the back there are thinner dowels used.

    Looking at this image https://www.printablescenery.com/wp-content/uploads/2018/10/Galleon-Figurehead-2.jpg

    The figurehead has two places to tie string in to on each side. But on the actual model, it´s only on one side?

    Also in the video where they are rigging a different ship, the holes in the rigging are ignored for some reason.

    Would be great if we could get some higher resolution pictures and clearer measurements for this as it´s quite complicated.

    • Avatar

      Nicholas Jebson

      Hey Redbyork. We are currently in the process of updating the various ships from the Lost Islands, so we will aim to update the measurements and diagrams at the same time.

  22. Avatar

    tkmangan (verified owner)

    Does the Galleon not have a steering wheel?

    Fantastic model by the way.

    • Avatar

      Mike

      It does come with a steering wheel in two parts. It isn’t on the model in the photos but you get it when you download the STL files.

  23. Avatar

    tkmangan (verified owner)

    I guess I need to better explain my question. Where on the Galleon does the steering wheel go? There is a clearly marked spot for the steering wheel on the Sloop and the Frigate, but does not seem to be one on the Galleon.

    • Avatar

      Mike

      Thanks for clarifying the question. There isn’t a dedicated spot on the Galleon model for the Ship’s Wheel. After doing some research, they were placed either on the Mid-back or Back Top section of the deck (in the STL files), depending on the ship. You’ll find the base for the wheel will glue on quite well to the model’s wooden texture. That way you can choose where you’d like it go.
