Dhow

$14.95

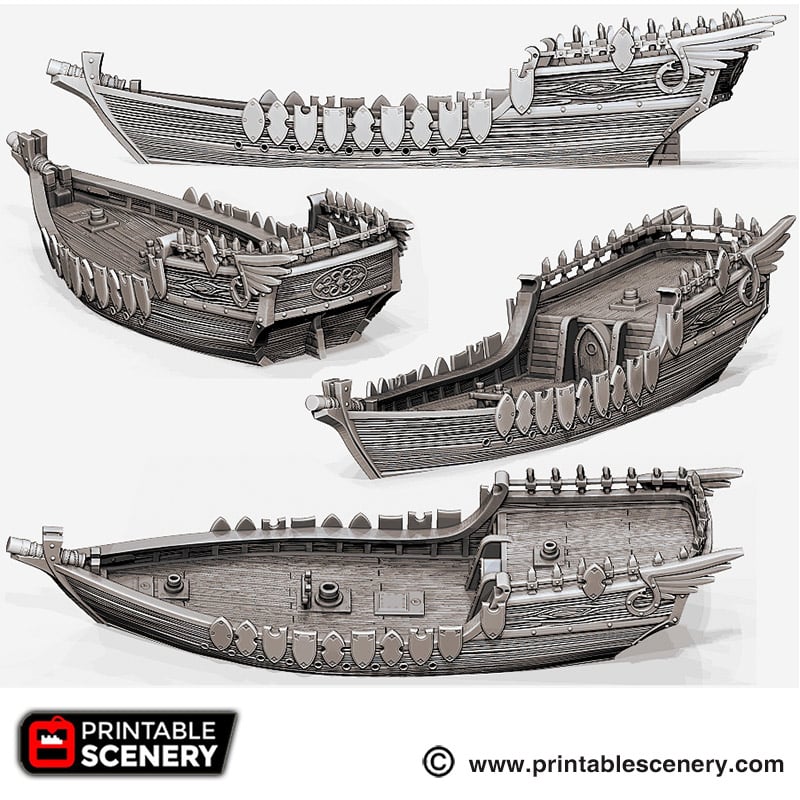

The Dhow is a ship that can be used in a fantasy or historical setting. It was traditionally used as a merchant vessel in the Indian ocean and Arabian seas and is still in use today.

To rig this model, check out our general Rigging Guide.

It includes separate deck layouts, a removable ‘wake’ that simulates ship movement, ballista and rigging clips. There are rigging clips for normal angles.

This product is part of the Add-On The Lost Ships. Please log in if you backed the campaign.

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

A sleek boat with large majestic sails for transporting cargo and soldiers quickly through war torn seas.

Update:

  • 16 February 2021(version 2.0) Hull wood grain re-textured to prevent stringing.

Notes:

  • Supports need to be touching build plate when printing the stern.
  • Right-click on the image below and “Save As” to download the reference sheet for this pack.
  • Product measurements can be found in the image gallery.

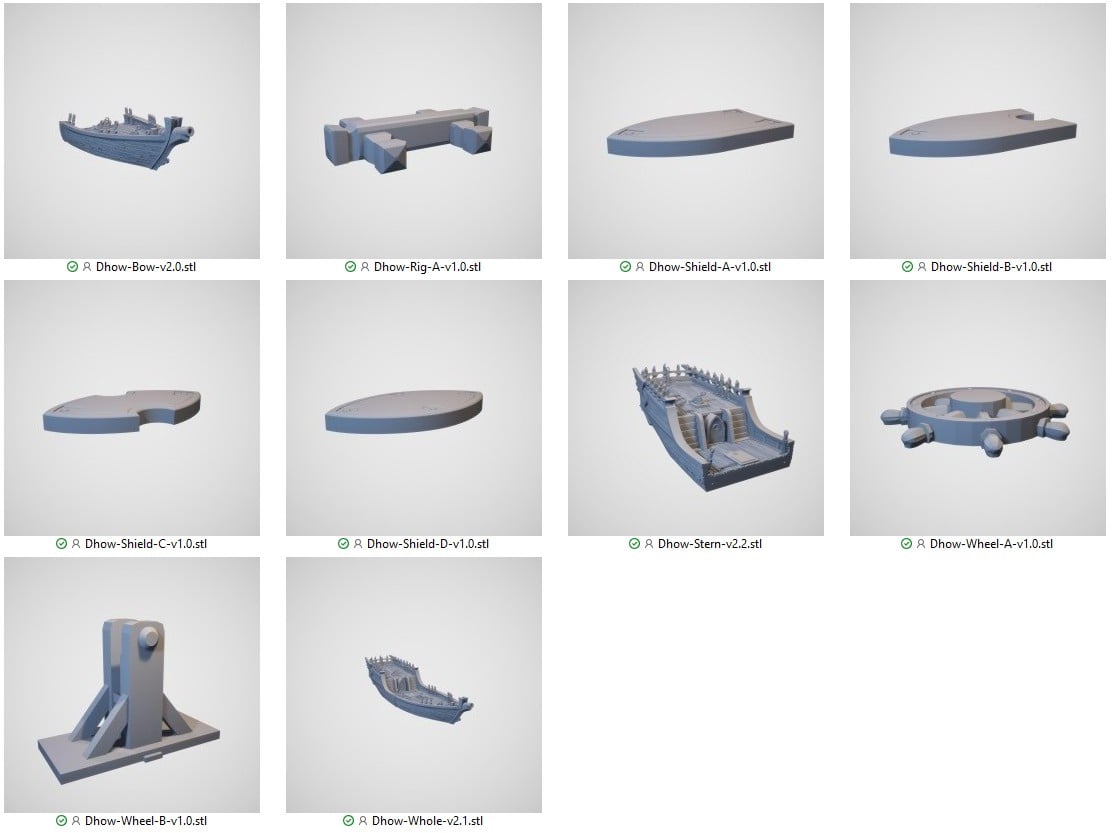

Medium Printer Reference

Small Printer Reference

Fittings Reference



Dhow Rigging

You will need 6mm (1/4 inch) and 4mm (3/16 inch) dowel for the masts and black elastic string for the rope. You may need to sand the ends of the dowel to go into the mast holes easily.

Wake Reference



Additional information

Infill

20%

Supports

Prints without Supports, Supports touching buildplate

Layer Height

.2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)

5 questions for Dhow

  1. Avatar

    Shaun Kantor (verified owner)

    Is there a guide for how you did the rigging with the angled masts on the Dhow? It seems very different then the sloop that the video guide is for.

    • Sam Campbell

      Sam Campbell (verified owner)

      There is no specific guide for rigging the dhow, just a general guide. For the Dhow rigging, the lateen is tied off from the base of the mast to the front part of the cross mast and the block and tackle pieces are loop tied around the top of the cross masts.

  2. Avatar

    E3DD

    What is the length and width of the Dhow?

    • Sam Campbell

      Sam Campbell (verified owner)

      376.5mm x 102.5mm

  3. Avatar

    Vinglo

    Can the pieces for this ship be printed on an Anycubic Photon Mono?
    Build Volume: 130mm(L)*80mm(W)*165mm(H)

    • Avatar

      Nicholas Jebson

      The largest section of the Dhow small printer cuts is 96(L)x 80.54(W)x 118(T). You would be able to print it by resizing it to 99% of the original size, which will not detract at all from its overall look. At most you would need to do a tiny bit of sanding at the base of the mast dowels to make them fit into the slightly smaller attachment points.

  4. Avatar

    dweathin (verified owner)

    I love this model – printed it out on my Ultimaker S3 as a single ship – been using it for a recent sea-faring DnD Adventure….loads of fun. Which got me to wondering, is there anyway to turn the .stl into a .obj file for Table Top Simulator? I tried meshmixer but I can’t get the vertices low enough (without losing all of the detail) – any chance you guys would make/sell files for Table Top Simulator – like Hero Forge has started doing for Characters?

    • Avatar

      Mike

      Hi Dweathin,

      Glad you like the ship! We can look at obj file conversion so that models can be used for TTS. As you identified it might depend on the number of vertices but it is a good idea!

  5. Avatar

    dweathin (verified owner)

    Mike – thanks for the reply – let me know if you guys can create obj files – I know Terrain Tinker is looking at doing this (with color included – which is awesome) – be great for building and importing dungeons and taverns and such – any idea if Terrain Tinker will do the boats?

    • Avatar

      Mike

      Im not sure if they have plans to add the ships, for now they’ve been concentrating on getting OpenLOCK sets in there. If you’re not on there already TerrainTinker has a Discord server you could ask on: https://discord.com/invite/aPSQuYHeqs
