Name: Winterdale 2 Townhouse
Brand: Age of Sigmar
Availability: InStock

Description

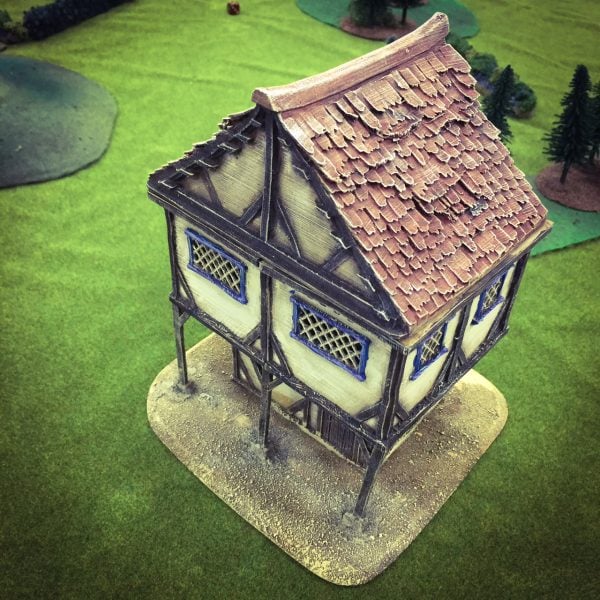

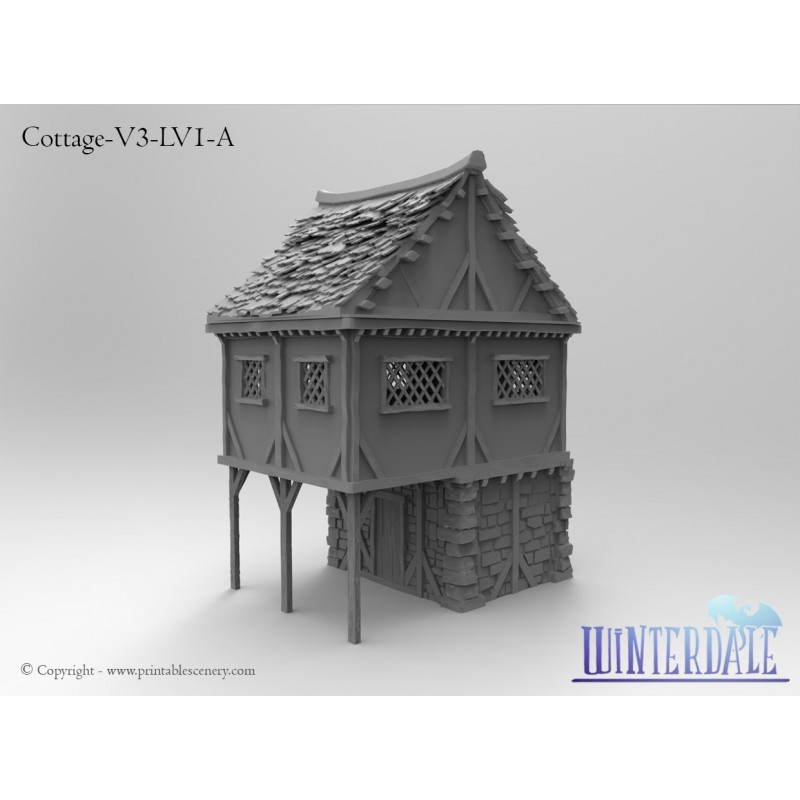

Townhouses in Winterdale are designed to be easy to build and maintain, as well as being warm enough for the unrelenting winters of the northern tundra.

Updates:

Now includes an option for the side stairs (The stair platform needs supports switched on).
Now includes an option with a door in the large house section.

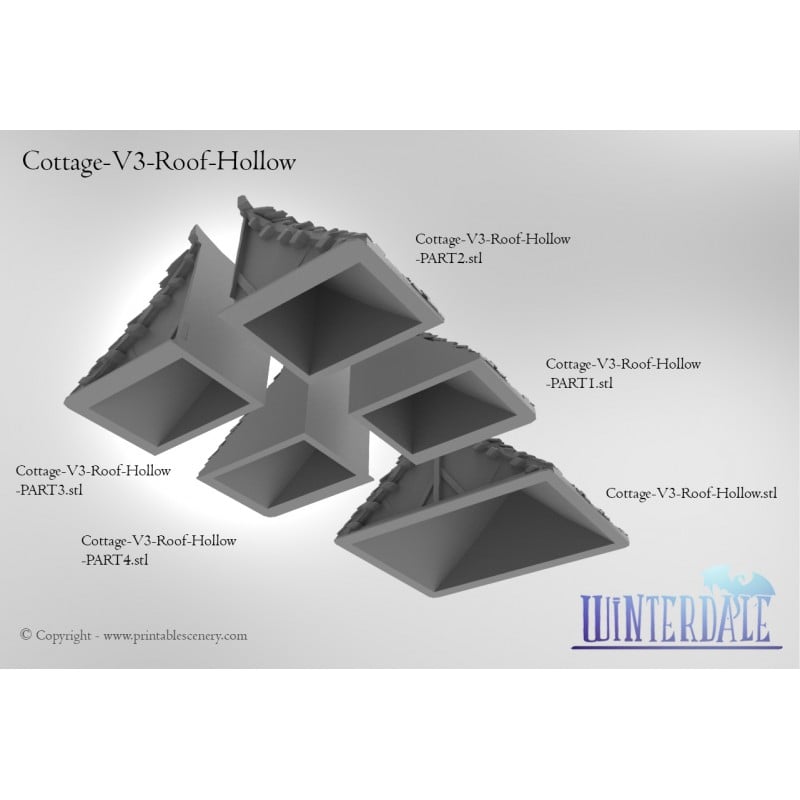

Options included to print the top section and roof on small print beds.
11 July 2017 (version 5.3) Small mesh repair to Cottage-V3-LV1-B-Floor-v1.0.
1 May 2018 (version 5.4) Stairs have been updated. Please refer to the notes.
2 August 2018 (version 5.5) Cottage-V3-LV1_With_Door added.
18 March 2019 (version 5.6) Locking pins have been added and filament door connection.
19 November 2019 (version 5.7) Solid options added.

Notes Winterdale 2 Townhouse:

A reference sheet for a small printer is located in the zip file.

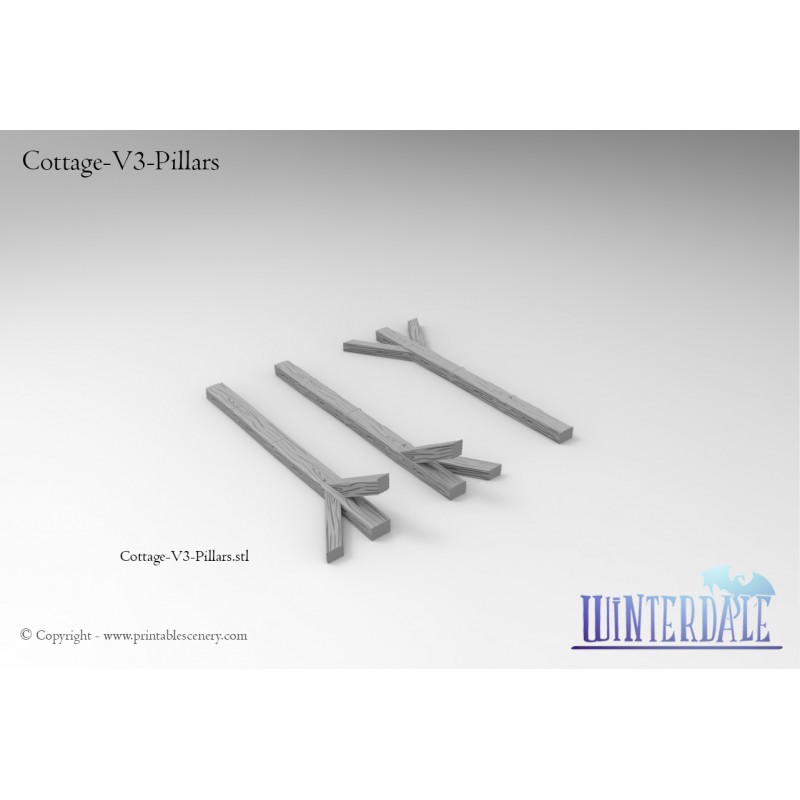

Supports are needed for the Stair Platform and Stair pillars. Needs touching bill plates on.
Right-click on the image below and “Save As” to download the reference sheet for this pack.
Product measurements can be found in the image gallery.

Reference Sheet for Solid versions

Additional information

Recommended Printer	FDM or resin printer
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Supports	requires supports for resin printing, Prints without Supports
Dimensions	Dimensions and weights are available in the image gallery
Scale	28mm Wargames

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	35.7%
15mm Wargames	15	1:116	53.6%
HO Scale	20	1:87	71.4%
OO Scale	22	1:76	78.6%
28mm Wargames	28	1:62	100.0%
32mm Heroic & OpenLOCK	32	1:54	114.3%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)
