Schist Walls

$19.95

The Schist Walls pack contains various tiles that can be clipped together. This pack is part of the Clorehaven City building line of building tiles and is designed to be used with the Tudor walls, Rustic Wooden and Rustic Stone floors. This set is compatible with all other OpenLOCK products.

Download the Rampage Base Pack for free to get the latest version of the OpenLOCK clip.

A small piece of filament or wire can be used as a hinge pin to attach the door to the doorway.

To assemble the buildings of Clorehaven you can download the Assembly Guides .

This product is part of the Late Pledge Clorehaven & the Goblin Grotto. Please log in if you backed the campaign.

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

The older and established buildings of Clorehaven are built of the schist stone that is plentiful in the region.

Updated:

  • 22 October 2019 (version 1.1) L -Buttress-SchistwCorbels-1-Mir added.
  • 6 November 2019 (version 1.2) Doors and doorway to build the Guardhouse added.
  • 12 November 2019 (version 1.3) OpenLOCK clip ports added to A-Schist-Entrance.
  • 14 November 2019 (version 1.4) I-Wall-Column added.
  • 20 November 2019 (version 1.5) D and DS Fireplace added.
  • 5 December 2019 (version 1.6) Top Locking variations and another Double door option added.

Notes:

  • Right-click on the image below and “Save As” to download the reference sheet for this pack.
  • Product measurements can be found in the image gallery.

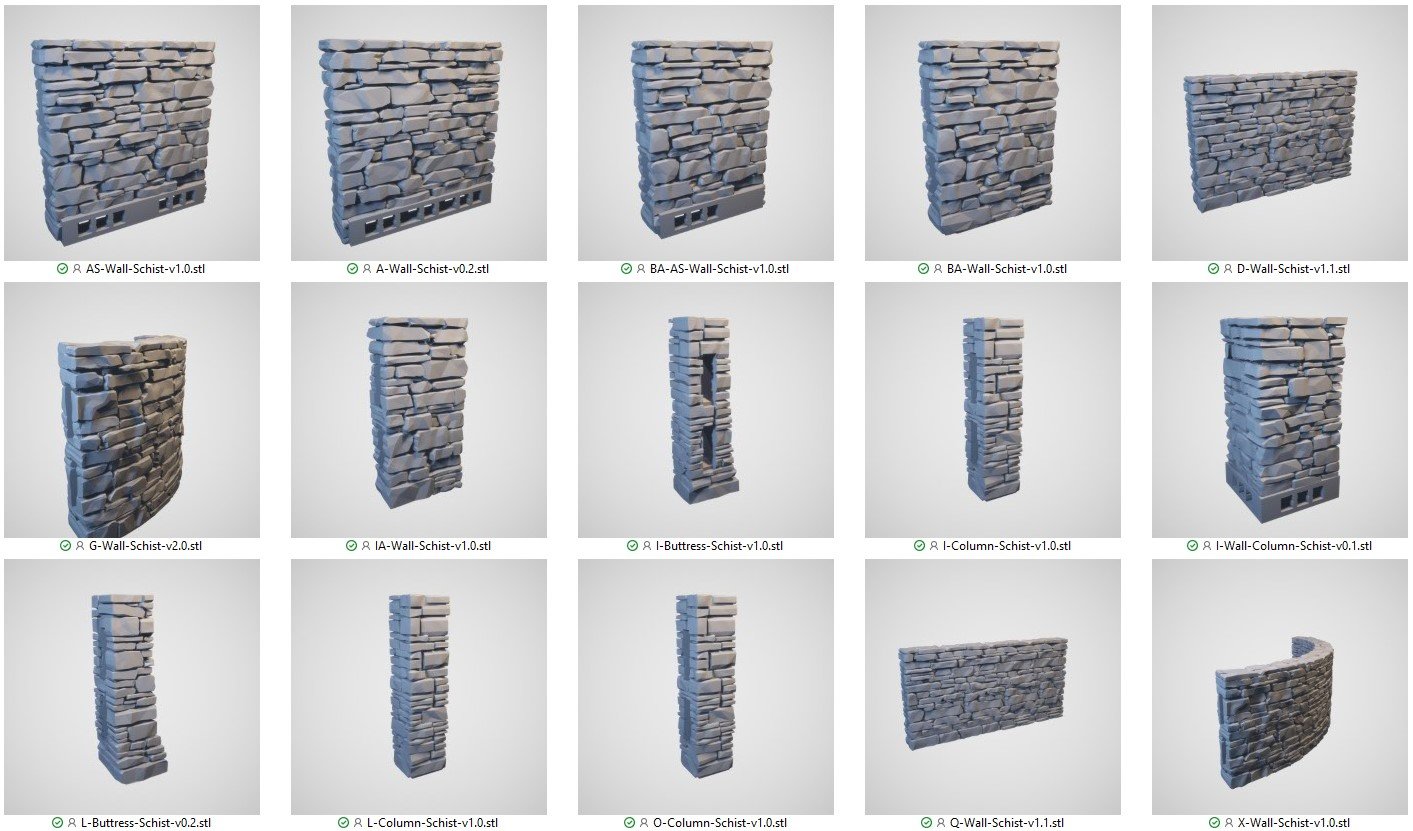

Schist Walls Reference

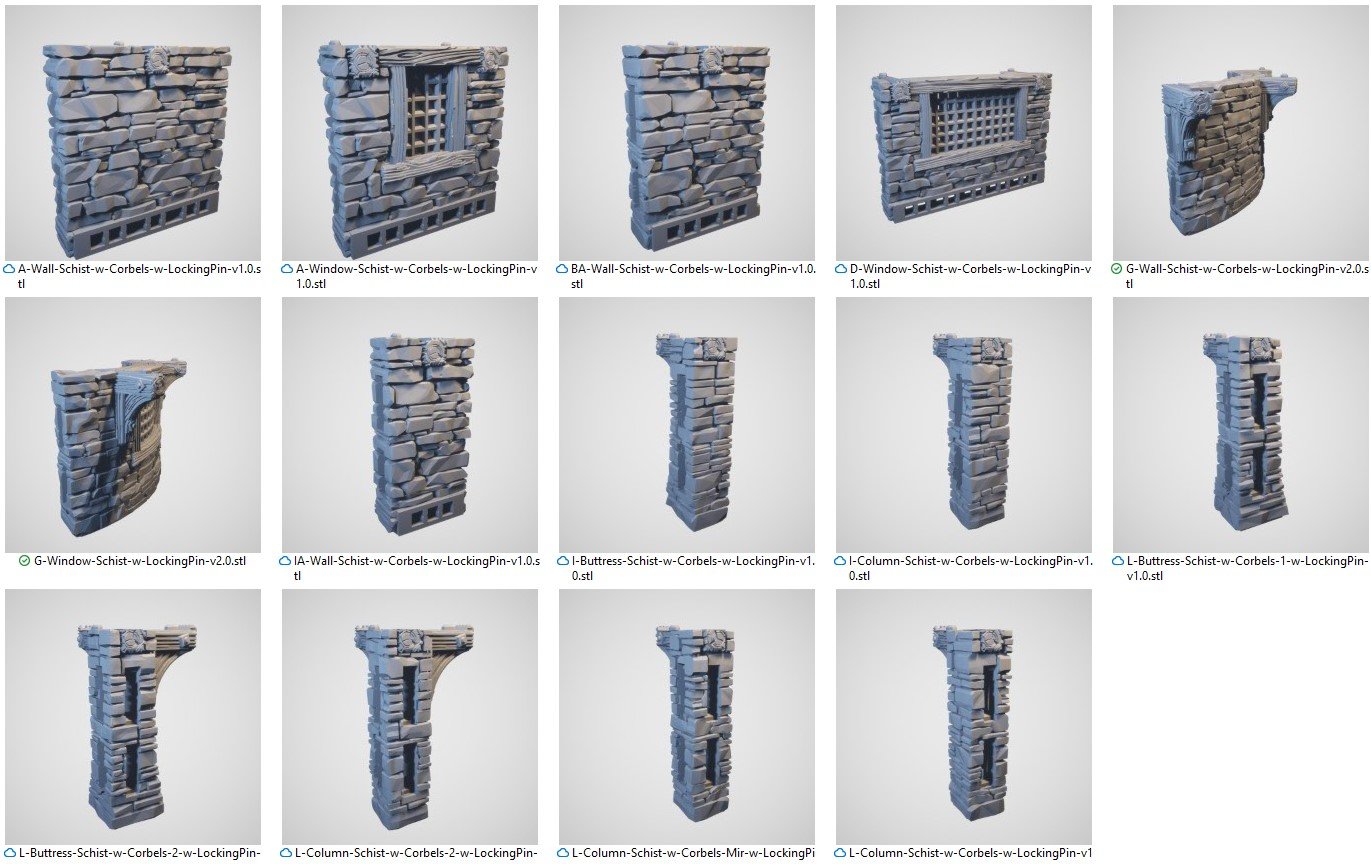

Schist Walls with Corbels Reference

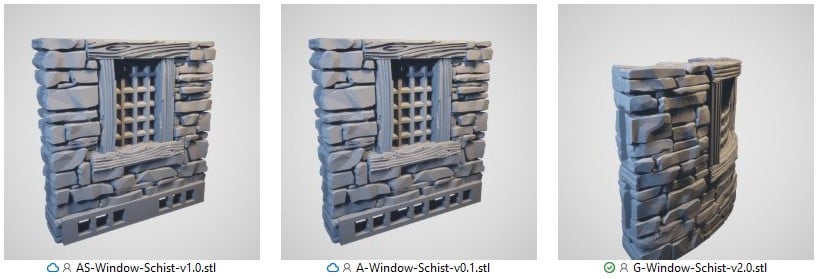

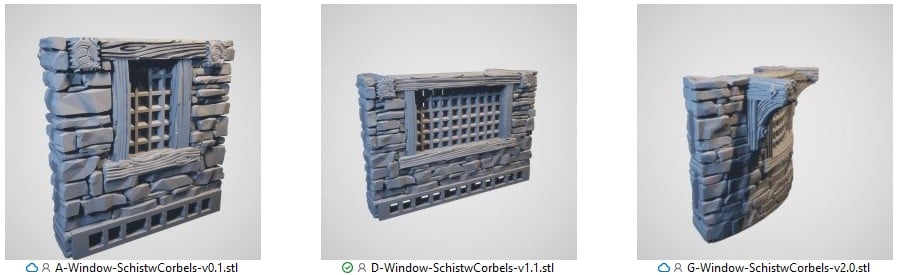

Schist Windows with Corbels Reference

Schist Windows with Corbels Reference

Schist Support Walls Reference

Schist Doorway Reference

Schist Doorway with Corbel Reference

Schist Double Doorway Reference

Schist Fireplace Reference

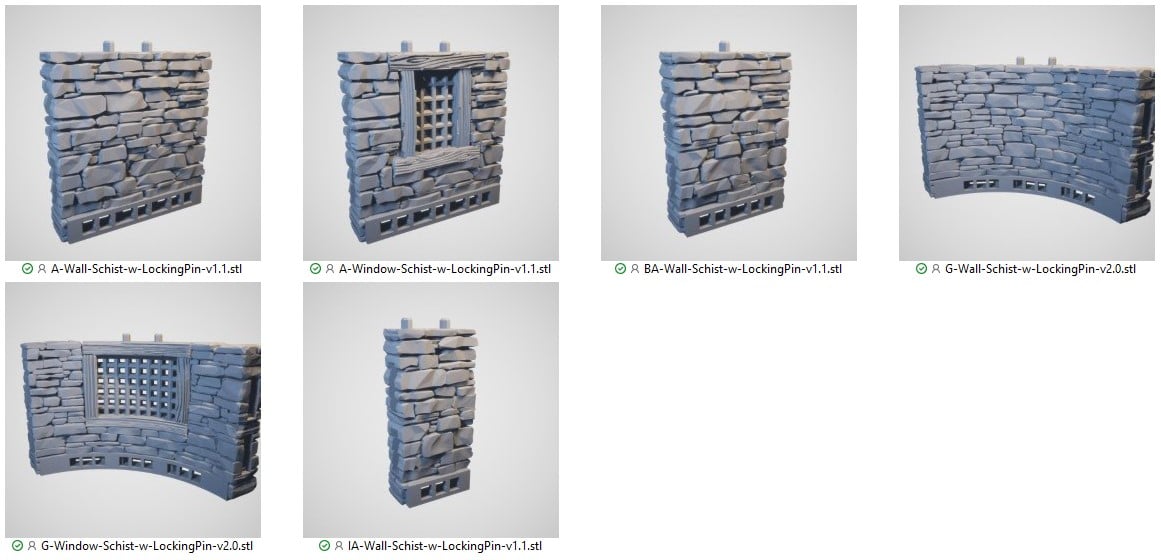

Top Locking variations Reference



Additional information

Infill

10%

Layer Height

.2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)

Supports

Prints without Supports

Q & A

  1. Avatar

    adam.pitzer (verified owner)

    What is supposed to be used to attach the door to the doorway?

    • Sam Campbell

      Sam Campbell (verified owner)

      A small piece of filament or wire can be used as a hinge pin to attach the door to the doorway.

  2. Avatar

    Gabriel parke (verified owner)

    Is the file for “L -Buttress-SchistwCorbels-1-Mir-v1.0” missing?

    • Sam Campbell

      Sam Campbell (verified owner)

      We’ll get this updated.

  3. Avatar

    Gabriel parke (verified owner)

    Wonderful, thank you so much Sam!

  4. Avatar

    kristo.vilepill (verified owner)

    Guardhouse has some doors and doorways that according to Assembly Diagram should be in Schist Walls set. Are they not yet added or are they somewhere else? (like Metal Hinged Door, Wooden Reinforced Door and Iron Bars Door)

    • Avatar

      Jo Boorer (verified owner)

      Schist Walls now contains the updated zip file with the Guardhouse doors and doorway.

  5. Avatar

    Michael (verified owner)

    Any chances on getting various T junctions? Various walls (A, AS, etc…) with already attacked I columns on one or both ends?

  6. Avatar

    Michael (verified owner)

    Any chances on getting various T junctions? Various walls (A, AS, etc…) with already attached I columns on one or both ends?

    • Sam Campbell

      Sam Campbell (verified owner)

      Yes, this is something we can look at.
