Name: Crypt Floors and Risers
Brand: Chaos
Availability: InStock

Description

Although the allure of treasure is high, the deeper you work your way into the crypts, the more you wonder whether you should be here at all. Everything here seems to be dead. Well, apart from the things that apparently want YOU to be dead.

Updates:

20 June 2017 (version 1.8) Small mesh repair to AB-RPG-CryptWallLow-V1.8, ED-RPG-CryptTomb-V1.7, SB-RPG-CryptFloor-V1.7.
10 October 2017 (version 1.9) Minor mesh repair to Tomb tiles to resolve an issue with some slicers.
4 May 2018 (version 2.1) Updated to Triplex
11 February 2020 (version 2.2) The Brazier now has a two part option.
1 July 2021 (version 2.3) R-TRPplus-CryptTomb and S-TRP-Crypt-Tomb had fixes made to detailing attachments.
24 August 2022 (version 2.4) Now contains a the E-F-A-TRP-Crypt-Floor-v2.0 which is a combination of the F-A tile and E tile that was requested.

Notes for Crypt Floors and Risers:

Right-click on the image below and “Save As” to download the reference sheet for this pack.

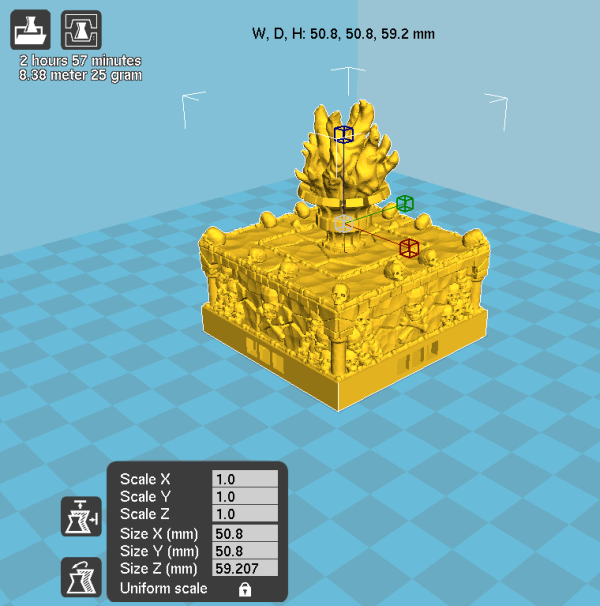

Product measurements can be found in the image gallery.

OpenLOCK Crypt Floor and Riser STLs

Additional information

Recommended Printer	FDM or resin printer
Terrain Tinker	Available
File Type	STL files in ZIP folder
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Print Volume	100mm x 100mm x 100mm print build volume required
Supports	requires supports for resin printing, Prints without Supports
Scale	32mm Heroic & OpenLOCK

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	31.3%
15mm Wargames	15	1:116	46.9%
HO Scale	20	1:87	62.5%
OO Scale	22	1:76	68.8%
28mm Wargames	28	1:62	87.5%
32mm Heroic & OpenLOCK	32	1:54	100.0%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)

Creating Magnetic Dungeon Tiles with OpenLOCK

Posted on July 21, 2025July 22, 2025 by Sloane Dougherty

This article will show you how to use the OpenLOCK Magnetic Clip to build fully interchangeable dungeons with magnets. Once you’ve built a collection of these magnetic clips, you can swap and change dungeon layouts in no time. The Magnetic Clip is an OpenLOCK adapter option. It is interchangeable with other OpenLOCK clips but is… Read more

Building a modular Ramshackle board for gaming

Posted on January 28, 2025July 23, 2025 by Sloane Dougherty

Warbands fight on cobblestone streets, ruins filled with danger and loot, and tall buildings for dramatic leaps of faith. These are all dream scenarios for fantasy wargamers and role-players. But having the right kind of board that enables this and gives you a different experience each time you play on it can take some work…. Read more

14 Comments

Removing supports from the OpenLOCK ports

Posted on August 24, 2017July 22, 2025 by Dee Barker

Horizontal OpenLOCK ports print with small supports to support the overhangs in the port mouth. You need to remove these supports post-printing before you can insert the OpenLOCK clips. We recommend using some needle-nosed pliers for this task. You can use the pliers to grip and twist the two supports in each port, breaking them… Read more

6 Comments

9 questions for Crypt Floors and Risers

jonathan.weismann (verified owner) – August 12, 2017

Will these tile sets be updated to the latest openlock standard to have 3 different openlock locations along all 4 sides of the base?
- Matt Barker – August 12, 2017

  Yes we will be updating the crypt floors, It’s on our to do list
cabounds – February 23, 2018

“Yes we will be updating the crypt floors, It’s on our to do list”….
Has this been completed? My 4×4 extended floors have 4 connections on each side not 3 as in this photo. Need to know before I buy.
- Matt Barker – February 25, 2018

  I have brought the crypt floors to the top of the update list
John Ware (verified owner) – May 4, 2018

Hi Matt and team, I know you’re busy with the KS projects, I was wondering if the crypt floors might get some attention, would be great to update these to triplex, and have a few more floor shapes, Thanks.
- Jo Boorer – May 4, 2018

  The Crypt Floors and Risers have just been updated to Triplex
josh1 (verified owner) – July 22, 2018

I’m having trouble figuring out which set the curved stone wall is from, in the first photo on this product. It’s the curved crypt riser, attached to a curved stone wall – which wall is that? Thanks!
- Sam Campbell – July 23, 2018

  Ramapage Heavy Wall G Tile from https://www.printablescenery.com/product/rampage-heavy-walls/
Alexander (verified owner) – February 6, 2020

Hey guys,

First: I really love your work. Especially the crypt tiles. Unfortunately one thing bothers me: The brazier on top of the EC tile. Is there a chance that you could offer the parts separately?
As I said at the beginning: great work. Looking forward to everything that will come in the future. 🙂
- Nicholas Jebson – February 7, 2020

  Hey Alexander
  We are looking at getting that updated, thank you for the suggestion.
  Nick
MJJEPPER (verified owner) – January 7, 2021

Hey guys, the S-TRP-Crypt-Tomb has a few model issues the cause failures. First, one of the crosses (corner panel) has a half sphere that is not adjoined to the wall. Second, one of the decorative little x’s attached to the arch on the one inch side is not attached to the wall. These two parts never print correctly on resin. Mind updating so that it is printable?
- Nicholas Jebson – January 7, 2021

  Interesting. Obviously we made it well before resin was a thing and it never seemed to effect the FDM prints. We will get it looked at and updated.
aylizia (verified owner) – June 24, 2021

I love this set, and I know it’s an older one but is there any chance for a addition to it at some point?
I was making a room with a circle floor design in the middle using the half circle pieces but there is no piece that can square it out again so it can connect to the other square floor tiles like W does in this set (https://www.printablescenery.com/product/rampage-stone-floors). I have that other set but it’s not really working with the design of this one sadly.
- Mike – June 24, 2021

  Hi Aylizia,

  Thanks for your suggestion, it is certainly something we will look at adding when this set comes up for an upgrade.
  It is likely that it will come through on TerrainTinker (which is great fun using OpenLOCK tiles if you haven’t tried it yet) but you will receive an email when the product does get updated.

  Thanks!
Jason Boss (verified owner) – May 24, 2024

Greetings, love this set. In process of printing at the moment. Quick question and apologies if i’ve missed the obvious, but are there floor tiles that are compatible with the columns (I) that allow it to fit squarely (and by pattern)? At the moment the columns are displacing the floors by their width and I cant find any tiles that fill the “gap.” Thanks in advance
- Joanne Boorer (verified owner) – May 27, 2024

  Hi. Thanks for your request.
  A solution I could get made for this is to have a column in the middle of an E tile.
  Would this create the look you require?
Jason Boss (verified owner) – May 31, 2024

@Joanne Boorer This sounds great. Just trying to insert columns with out displacing the floor dimensions and patterning. Thank you for your response
