Name: HAB Blocks
Brand: Future Gothic
Availability: InStock

HAB Blocks

$9.95

Any sales taxes will be calculated in the checkout.

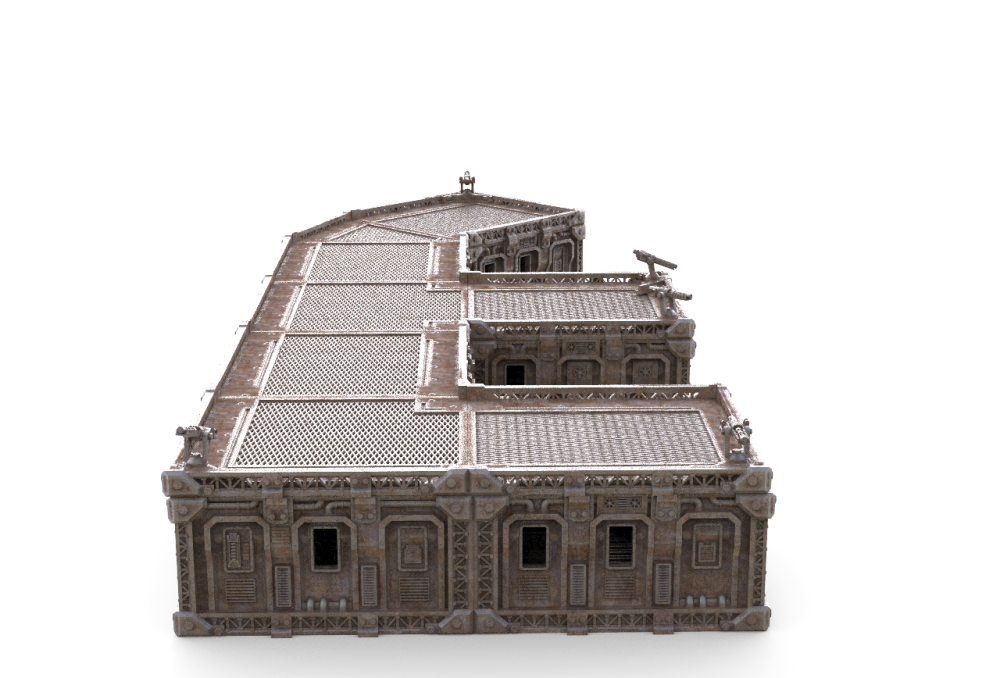

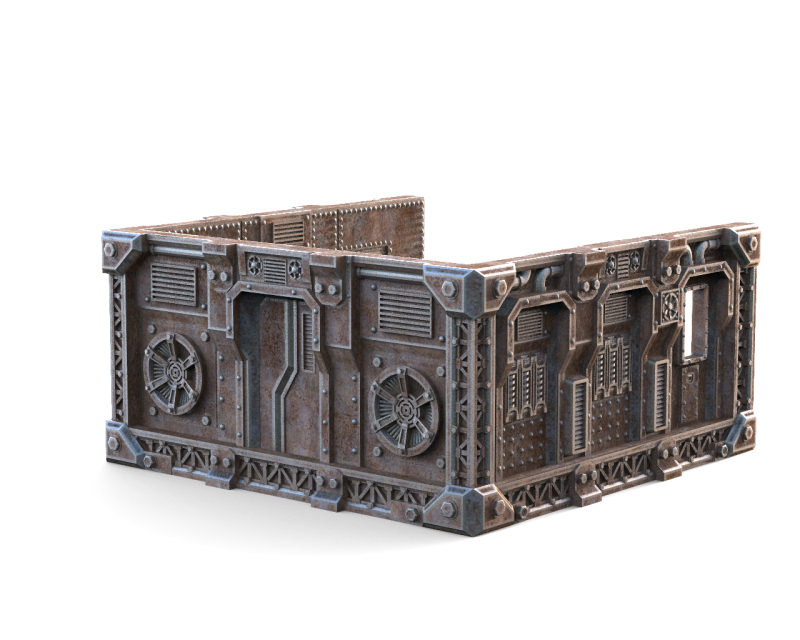

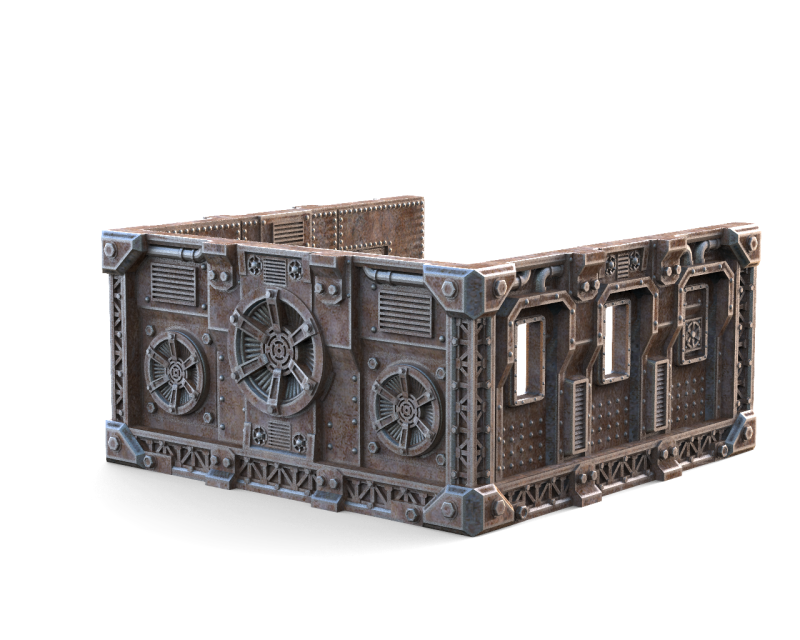

The HAB Block is a modular sci-fi terrain piece and each piece is 50mm high and based on a 100mm x 100mm footprint. The interior details on the walls are fully modeled. They can be stacked on top of each other and arranged in a wide variety of configurations. The HAB Block pack also comes with optional unmanned weapons, which can be posted around the top of the model.

Using the guide holes and spare filament you can secure the levels of the building in place. Our guide on how to do this can be found here.

This product is part of the APOC Sci-Fi

This product is delivered as a .ZIP file pack containing 3d printer files (STL files) for use on a home 3D Printer.

Description

The ubiquitous HAB Block is a common sight the galaxy over. These prefabricated modular buildings are cheap to make and easy to deploy. They provide everyone from soldiers to colonists with a secure place to rest and resist.

Updates:

1.1 The Gun has been scaled down by 50%.
1.2 Tile 6R now has a flat bottom.

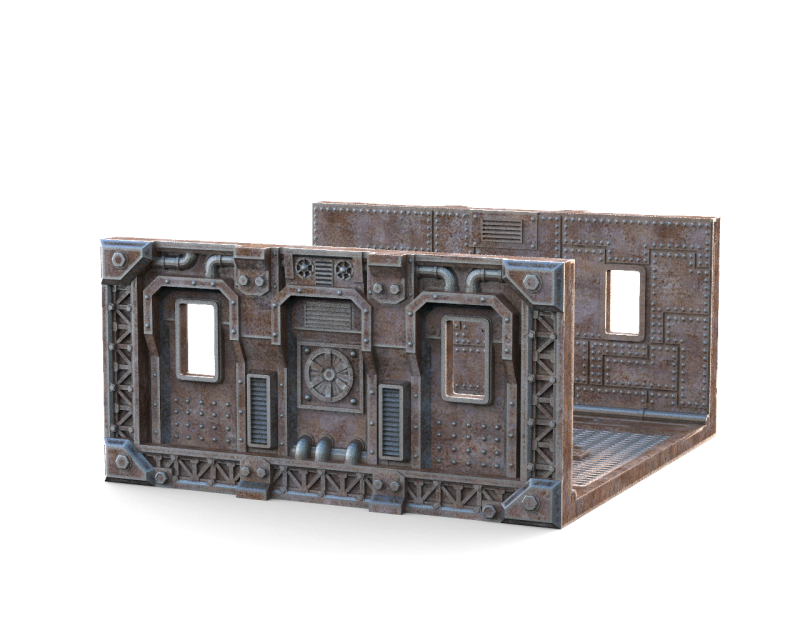

19 April 2017 – 1.3 The middle section is now available allowing you to make larger structures.
15 February 2018 -1.4 A HAB Block wall with door has been added with the door removed, giving the appearance of an open door.
8 August 2018 – 1.5 Filament guide holes added to HAB BLOCK 1R.

Notes for HAB Blocks:

Right-click on the image below and “Save As” to download the reference sheet for this pack.

Additional information

Recommended Printer	FDM or resin printer
File Type	STL files in ZIP folder
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Supports	requires supports for resin printing, Prints without Supports
Scale	28mm Wargames

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	35.7%
15mm Wargames	15	1:116	53.6%
HO Scale	20	1:87	71.4%
OO Scale	22	1:76	78.6%
28mm Wargames	28	1:62	100.0%
32mm Heroic & OpenLOCK	32	1:54	114.3%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)

6 questions for HAB Blocks

Thomas Sexton – September 26, 2016

I’m sure this has been asked a million times.. but if i want to scale this down to 10 mm for Dropzone.. what percentage would i need to scale it down?
- Matthew Barker – September 27, 2016

  I scale down by .6 for Flames of War which is 15mm. I think scaling by .5 would work for dropzone, it would make them 25mm high and a 50mm x 50mm footprint for each piece. I would be keen to see photos of them scaled to 50%. Also, if you scale that small be sure to print at .1 or finer layer height
Matthew Barker – October 10, 2016

We have just updated the Gun, its now scaled down by 50% to match the Hab Blocks
Hampus Wahlén (verified owner) – February 28, 2017

Is there any possibility to add a piece with no walls? and a roof for it? so you can build 3×3 and bigger?
- Matthew Barker – March 1, 2017

  Great Idea, we can do this, it will be fairly simple, I’ll add it to our to-do list.
Caitlyn (verified owner) – April 21, 2017

Any way to get one with a door (~30mm opening) on the wall? Looking to let Infinity minis enter and leave 🙂
- Matthew Barker – April 22, 2017

  No problem, I’ve added that to the next updates
phoenixhaze83 (verified owner) – August 2, 2018

Is it possible to get filament guides on the bottom of 1R?
- Jo Boorer – August 6, 2018

  We are working on this now and will inform you when this has been updated.
greg3 (verified owner) – February 27, 2020

I see you have a HAB mid piece but no matching roof, Do you intend for any roof to fit there or a specific piece there?
- Nicholas Jebson – February 29, 2020

  Most people use it to anchor a second level, I will add it to the ideas for improvements. With the next kickstarter coming up it wouldn’t be for a wee while though.
