Name: Gothic Abbey
Brand: A Song of Ice & Fire
Availability: InStock

Gothic Abbey

$9.95

Any sales taxes will be calculated in the checkout.

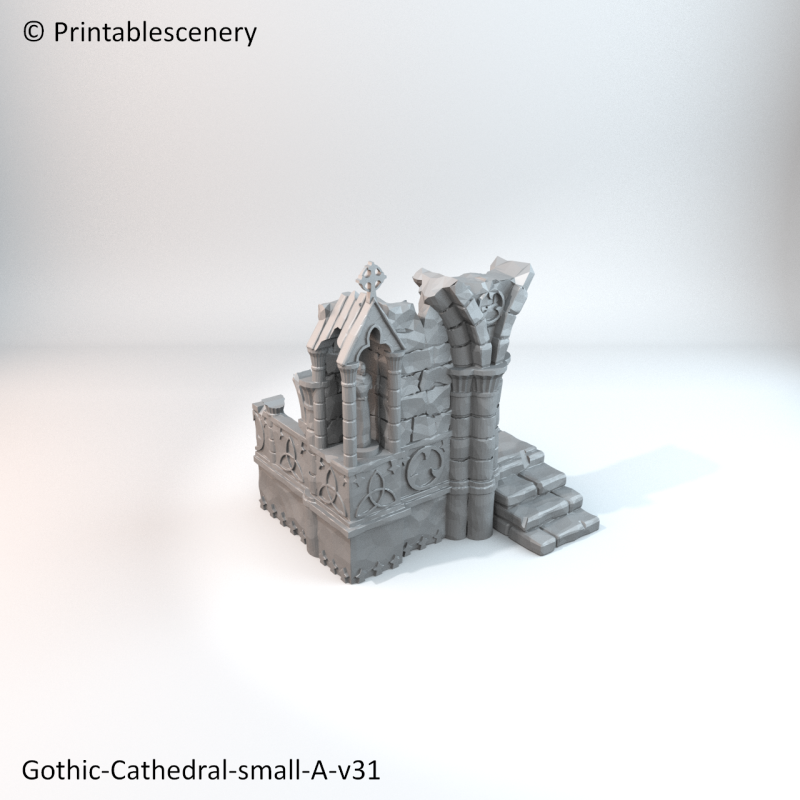

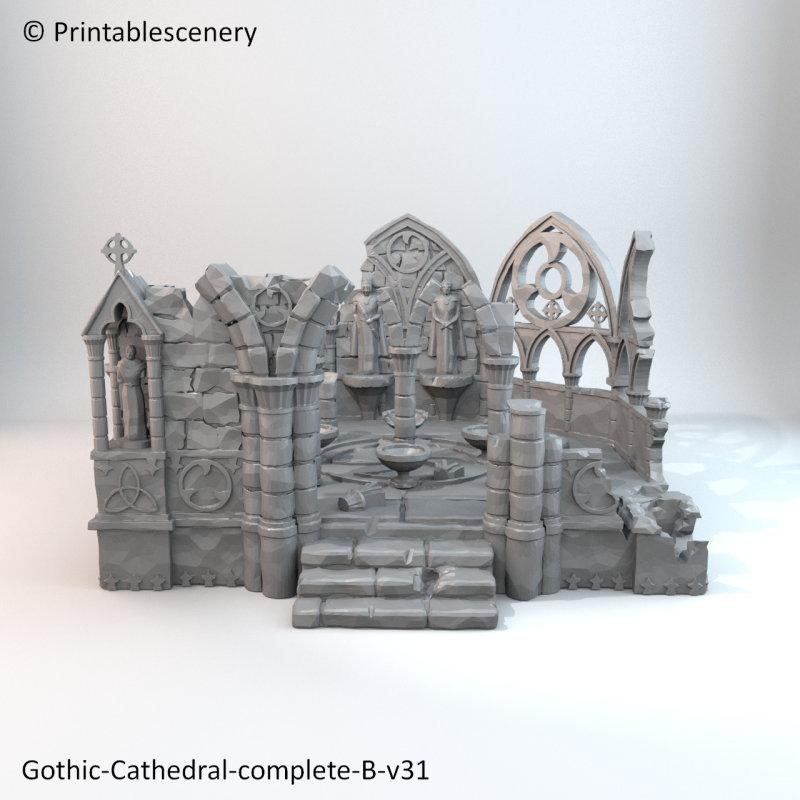

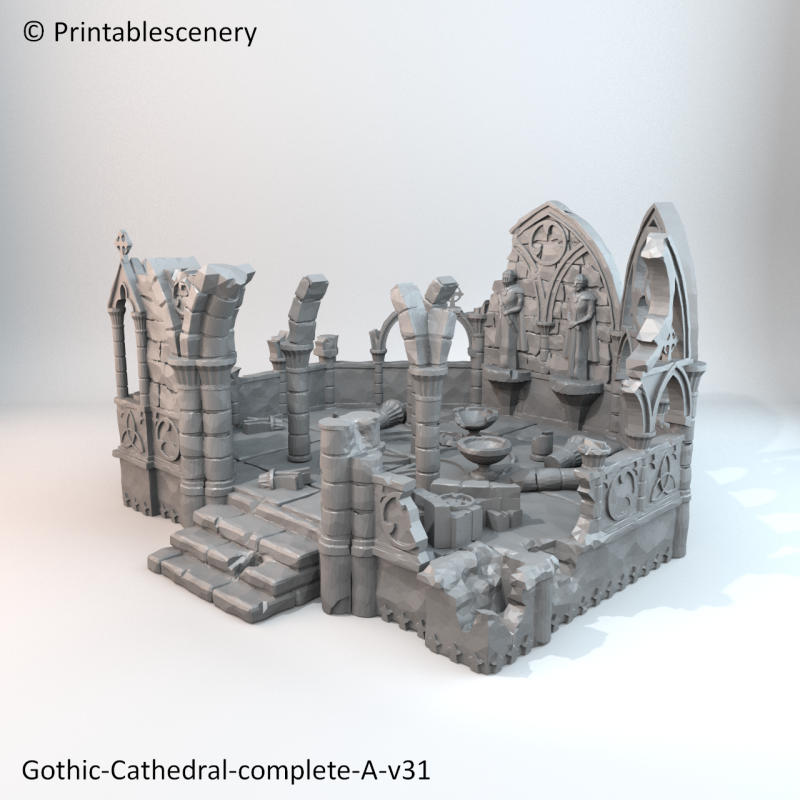

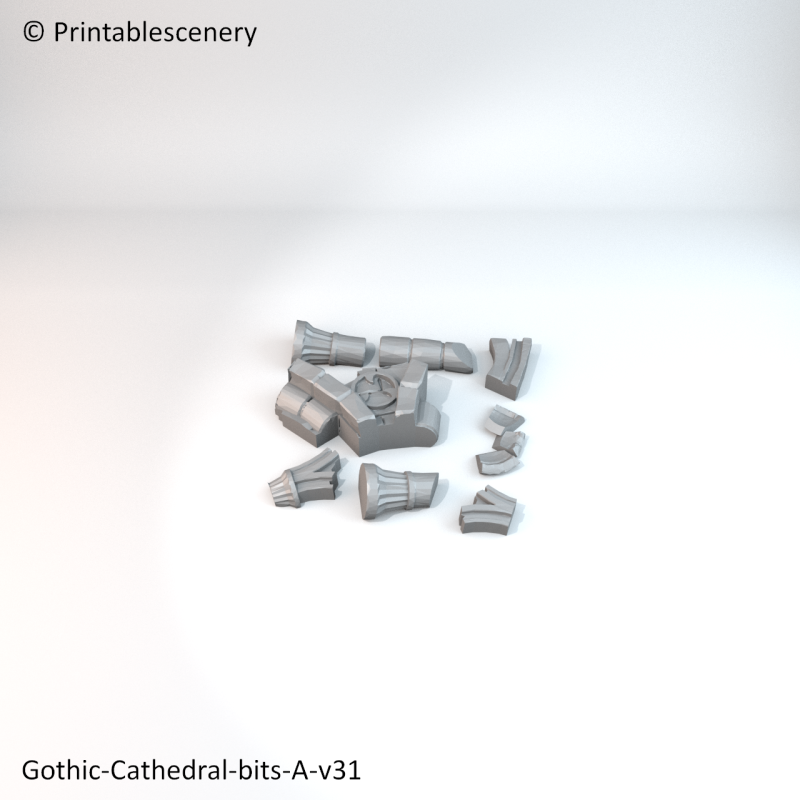

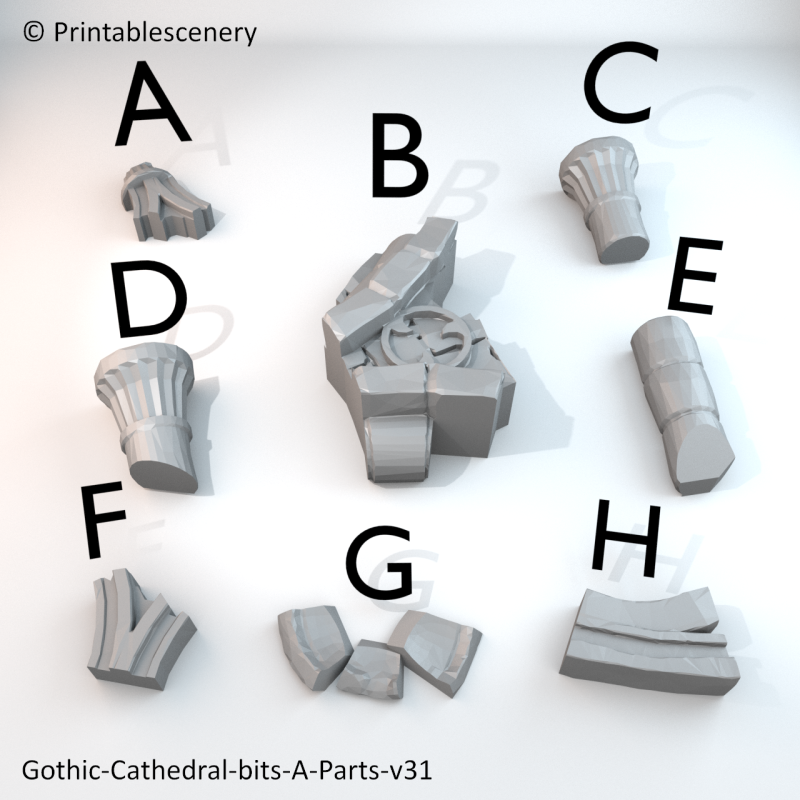

The Gothic Abby is a multi-part model, suitable for tabletop wargames of fantasy, historical, or science-fiction settings. Designed to be printed in 4 parts and assembled, it should be glued together. Also included are ruin components that can be used as scatter terrain.

This product is part of the APOC Sci-Fi

This product is delivered as a .ZIP file pack containing 3d printer files (STL files) for use on a home 3D Printer.

Description

Serene and uplifting while intact, a ruined Gothic abbey retains its peaceful appeal, both as a restful dwelling for forest creatures and a place for travellers to pause and think.

Updates:

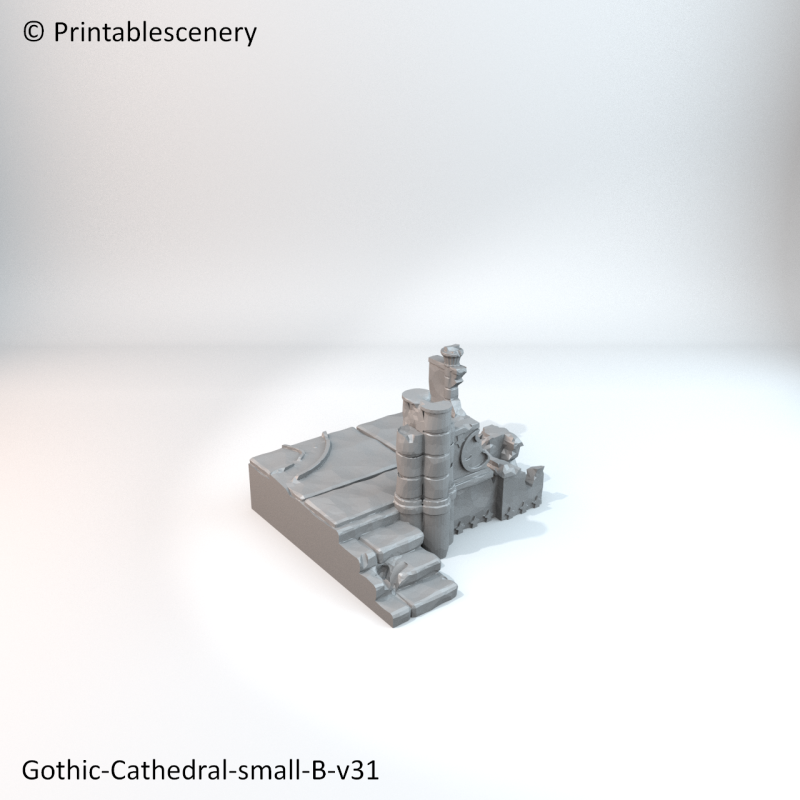

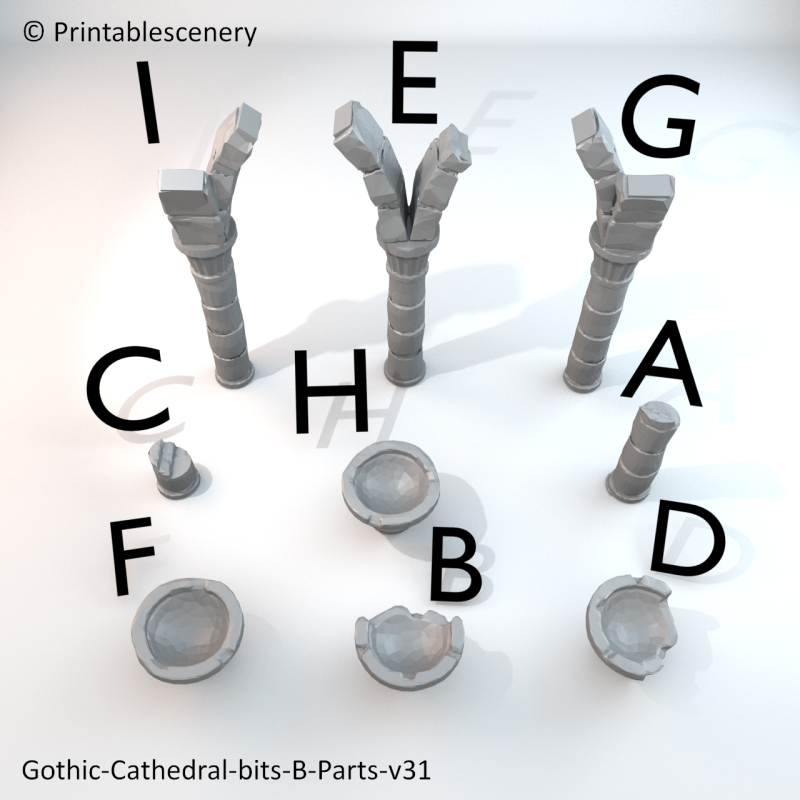

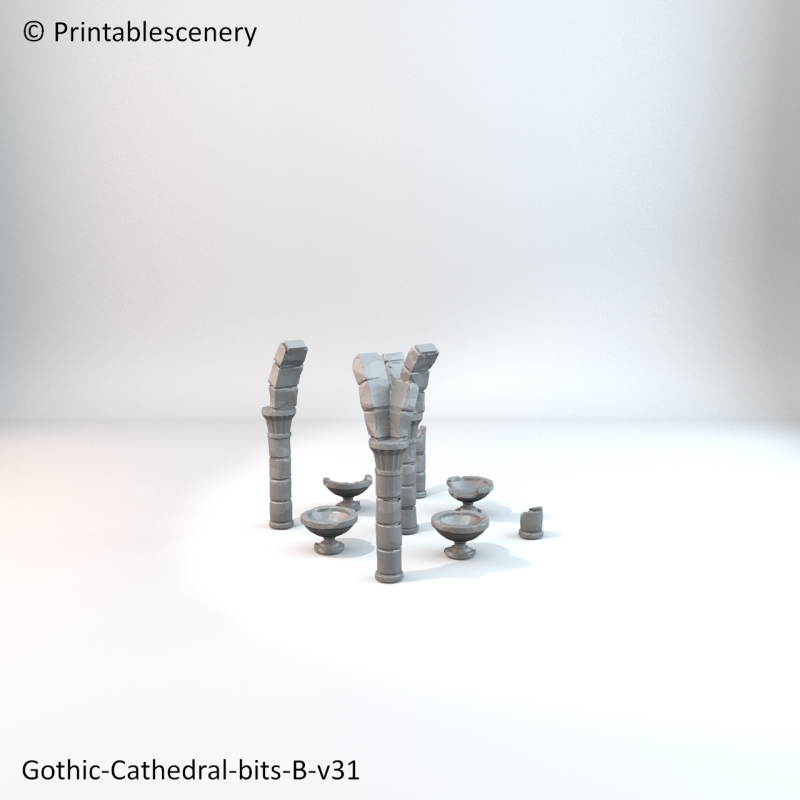

29 June 2017 (version 1.0) Small mesh repairs to Gothic-Cathedral-bits-B-v1.0, Gothic-Cathedral-small-B-v1.0, Gothic-Cathedral-v1.0.

Notes for Gothic Abbey:

These files will print without support.

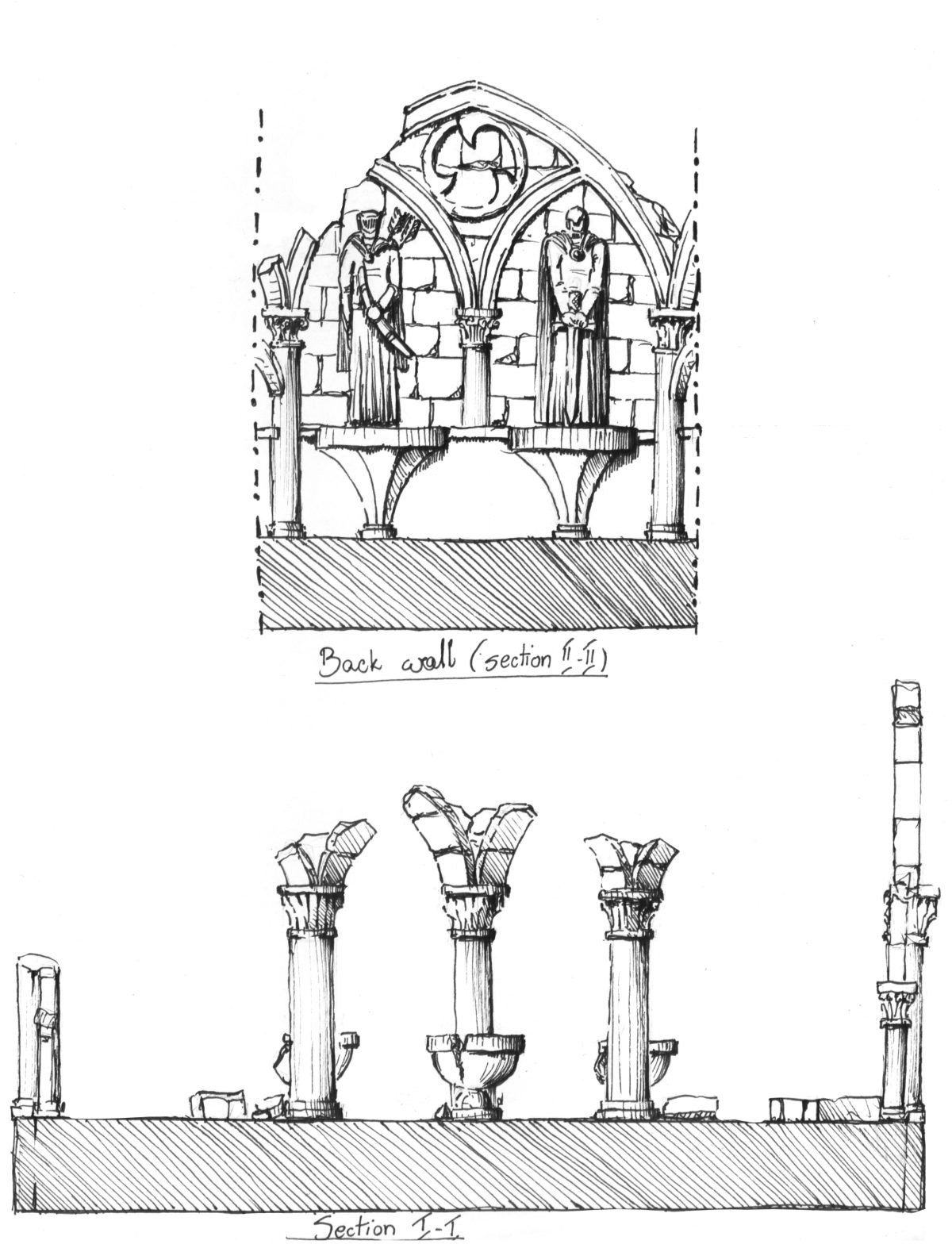

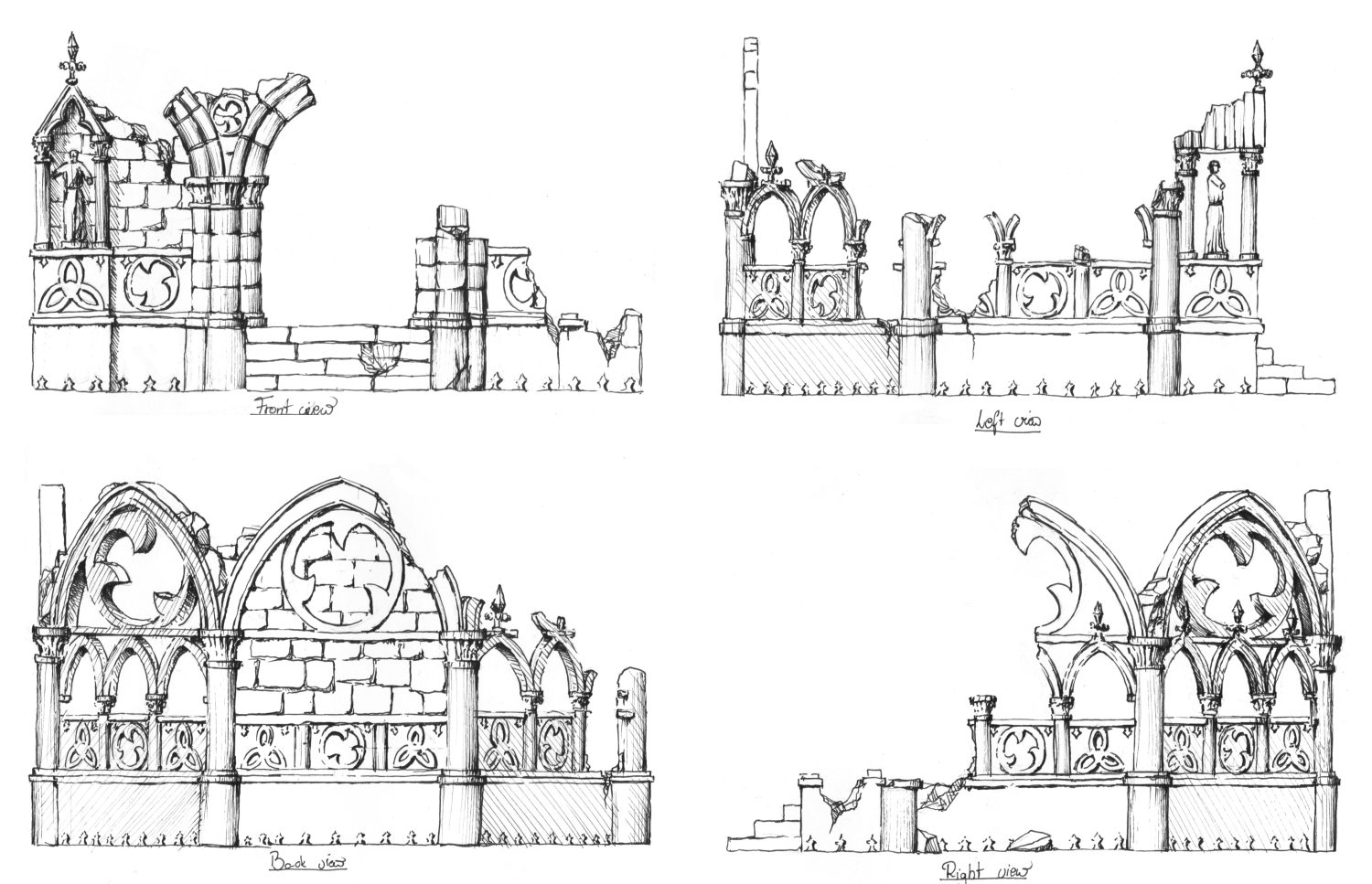

Right-click on the image below and “Save As” to download the reference sheet for this pack.
Product measurements can be found in the image gallery.

Additional information

Recommended Printer	FDM or resin printer
Dimensions	Dimensions and weights are available in the image gallery
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Supports	requires supports for resin printing, FDM Prints without support
Scale	28mm Wargames

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	35.7%
15mm Wargames	15	1:116	53.6%
HO Scale	20	1:87	71.4%
OO Scale	22	1:76	78.6%
28mm Wargames	28	1:62	100.0%
32mm Heroic & OpenLOCK	32	1:54	114.3%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)

Comments

Simon Layton (verified owner) – October 2, 2016

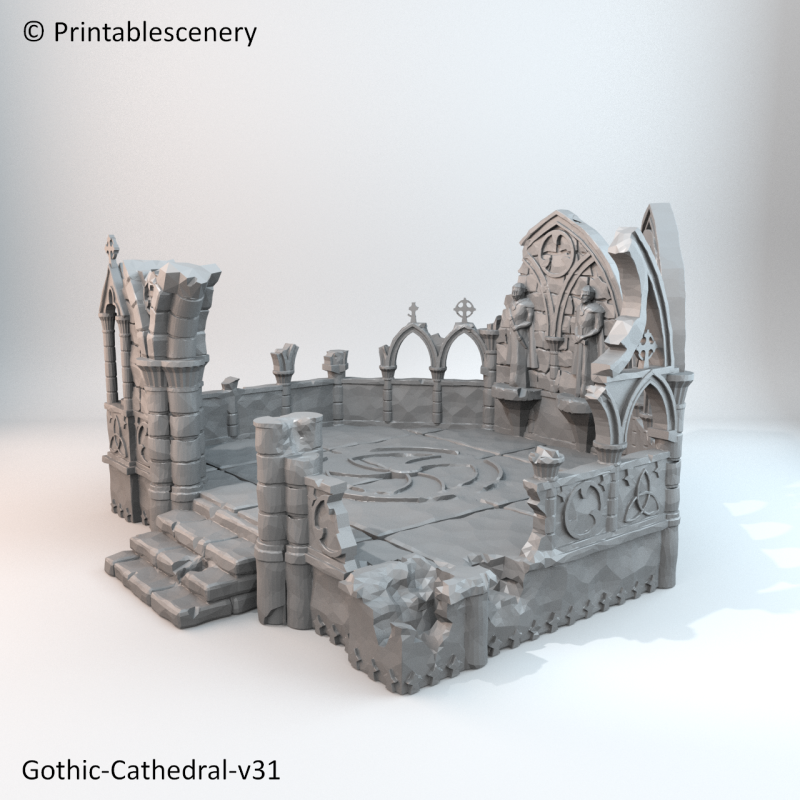

Is it possible to print the gothic-cathedral-v31 on a wahhao duplicator i3 as one piece? I loaded the file in cura and it seems to fit (only just) once you remove the raft or brim but it wont produce the gcode file.
- Matthew Barker – October 3, 2016

  It will be too big, it’s a really big model. I would shrink it down slightly or print as separate parts
Daniel Joelsson (verified owner) – October 23, 2016

Does this print need supports or can it print without? Your pages usually specify, but this one does not.
- Matthew Barker – October 23, 2016

  This prints without supports, the gothic windows are a perfect design for unsupported 3d printing
Matthew Holland (verified owner) – October 16, 2017

I’ve already printed mine and love it, but one thing I wish I had was the ability to use openlock clips to hold the 4 parts together. (I don’t want to super glue for storage reasons)
- Rex Foot – January 15, 2018

  The Abby has been designed to be glued together, and is a standalone piece. We currently do not have any plans to make an OpenLOCK version.
Chris Lauer (verified owner) – February 14, 2020

The small pieces are still too large for an Elegoo Mars bed. Any chance you can slice the big Abby into 6 pieces?
- Nicholas Jebson – February 17, 2020

  Hey Chris, The Elegoo Mars is a particularly small printer, so yes even our files designed for smaller beds might be too big. If you are wanting to make them into smaller sections that your printer can do i would recommend checking out this handy tutorial on Youtube: https://www.youtube.com/watch?v=Tgc66TvEke4
Voodoo (verified owner) – June 11, 2025

trying to print the one piece version. Lays down the first layer okay. Second layer lays down a two and a half inch strip diagonally in the middle then tries to lay down third layer in the opposite direction. very weird tried to print twice with same result
- Joanne Boorer (verified owner) – June 12, 2025

  Can you email [email protected] with the name of the slicer you are using.
