Name: Winterdale Crenellations
Brand: A Song of Ice & Fire
Availability: InStock

Description

Winterdale walls and defences are all made of unyielding mountain stone. Using such material as the foundation for the city has allowed Winterdale to remain a proud beacon of civilization in a savage land.

Updates:

25 July 2017 (version 5.1) Small mesh repair to WinterdaleCitadel-Battlement-1.1-A-PART2.
26 April 2018 (version 5.2) WinterdaleCitadel-Crenellation, WinterdaleCitadel-Crenellation, WinterdaleCitadel-Crenellation, WinterdaleCitadel-SpikeTurretRing resized.
8 November 2018 (version 5.3) Crenelation Bend options added

Notes for Winterdale Crenellations:

Right-click on the image below and “Save As” to download the reference sheet for this pack.
Product measurements can be found in the image gallery.

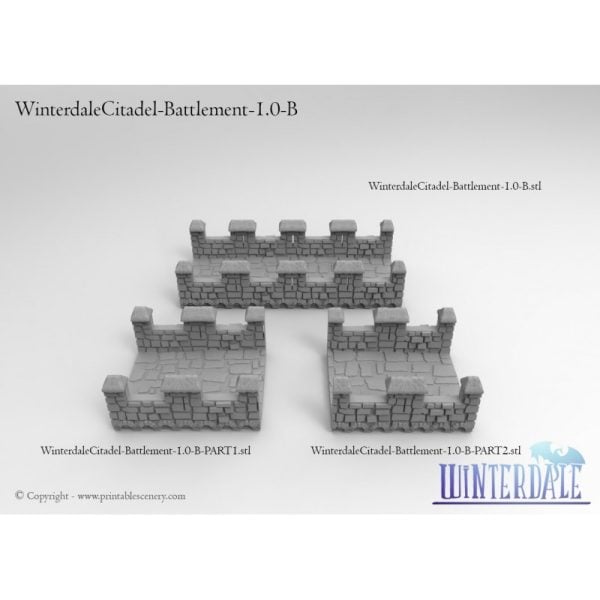

Winterdale Crenelation Reference

Winterdale Crenelation Small Printer Reference

Winterdale Crenelation Bend Options Reference

Additional information

Recommended Printer	FDM or resin printer
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Supports	requires supports for resin printing, Prints without Supports
Scale	28mm Wargames

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	35.7%
15mm Wargames	15	1:116	53.6%
HO Scale	20	1:87	71.4%
OO Scale	22	1:76	78.6%
28mm Wargames	28	1:62	100.0%
32mm Heroic & OpenLOCK	32	1:54	114.3%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)

2 questions for Winterdale Crenellations

joe (verified owner) – October 27, 2017

Was kind of sad after buying the curved wall option not seeing an option to print the 1.0-Af, or lack of a better description pointed mini towers battlements. for curved walls. Kind of left my citadel lacking in the corners…
p_comins (verified owner) – November 4, 2018

Were the 1.0-A and the 1.0-B Crenelation options considered (or done) for the other elements of the Winterdale Walls (Bridge, Curved walls, Gatehouse etc)? I can see the spiked option across the range, but not the other two? (I’m a fan of the arrow slit 1.0-B one personally).
- Sam Campbell – November 5, 2018

  There are no options for those crenelation variants at the moment, we will have a look at adding it to our development queue.
