Winterdale Citadel Towers

$14.95

Winterdale Towers rise like severe, grey stone like fingers into the cold sky.  These tall and sturdy towers from which the Winterdale Guard keeps watch over the land, warns the city of any encroaching danger.

The Winterdale Tower set allows for the printing out of a modular castle tower, with two options for the tower’s turret. The ability to print out multiple floors of the tower allowing for the height of the building to be fully customized.

In addition, the tower comes with a plinth, that allows it to be lined up neatly with the Winterdale wall and tower bridge sets. A set of steps gives access to the tower’s door when raised on this plinth.

This product is part of the ADD-ON Winterdale Complete. Please log in if you backed the campaign.

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

Updates:

  • 5.2 All tower sections now have the same relative scale floor plate. Turret now prints in two pieces to avoid overhang. Now includes 4 door option and large door version.

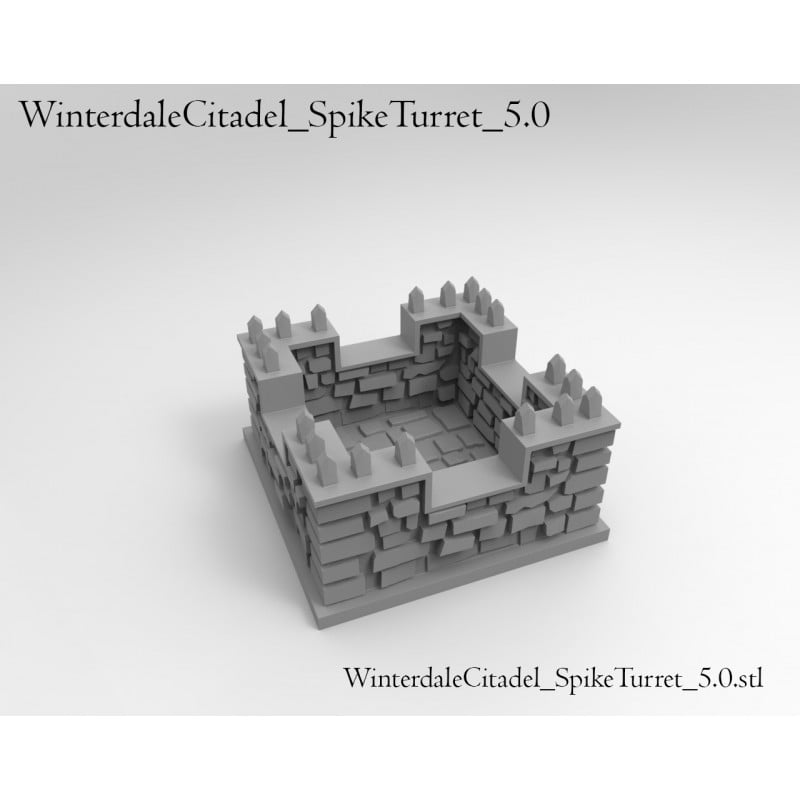

  • 5.3 25 July 2017 – 5.3 Contains small mesh repair to WinterdaleCitadel_SpikeTurret_5.1, WinterdaleCitadelTower-5.3-Door, WinterdaleCitadelTower-5.3-DoubleDoor.
  • 24 April 2018 – 5.4 Scaling corrections made to Turrets and Turret Ring.
  • 31 October 2018 – 5.5 Lower Base added so that Towers are level when used along side Citadel Walls.
  • 1 April 2019 – 5.6 Locking pins, filament door connections and doorway bases have been added.

Notes:

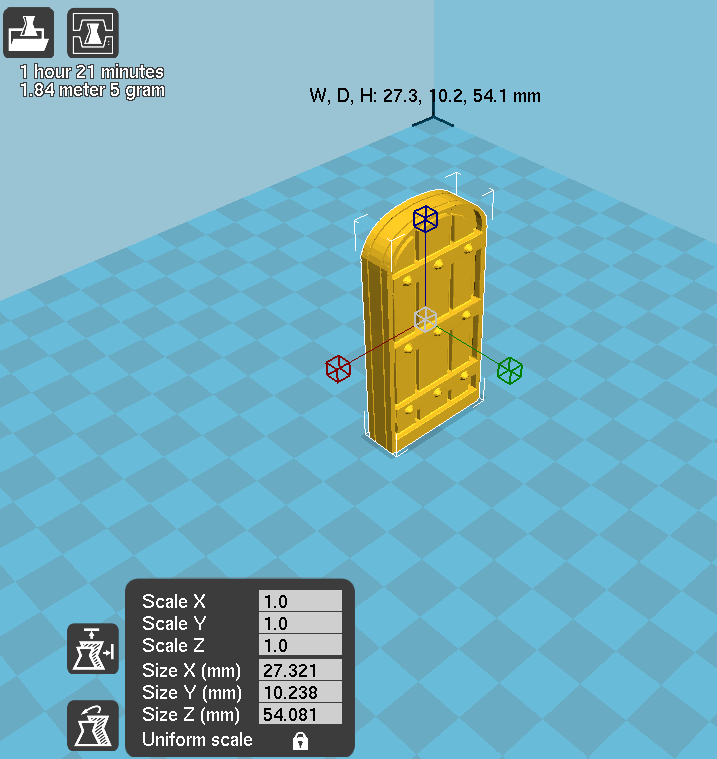

  • Right-click on the image below and “Save As” to download the reference sheet for this pack.

Additional information

Infill

20%

Layer Height

.2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)

Supports

Prints without Supports

Q & A

  1. Avatar

    Matthew Barker (verified owner)

    Please note that the scale had increased from the previous version of the tower to allow the 4 door tower to fit properly with the walls.

    You can easily change the scale back to the original scale by setting the size to 7.4 ✕ 5.3 ✕ 7.4 cm.

  2. Avatar

    Ian O’Brien (verified owner)

    Hi Mathew

    When you scale change like this it makes compatibility very difficult, especially with preexisting sets.

    Could you please make the older versions of the sets downloadable too?

    • Avatar

      Matthew Barker (verified owner)

      I have added to older sets to the downloads, you now have both scales

  3. Avatar

    vframmer (verified owner)

    Impossible to plug Spike Turret Ring into an other part. Problem with size ?

    • Avatar

      Jo Boorer

      Currently being worked on and should be available next week

  4. Avatar

    vframmer (verified owner)

    Hi,
    I have a problem with WinterdaleCitadel-SpikeTurretRing-5.2.stl.
    I have 2 versions of Winterdale-Citadel-Tower-5.3.zip ( 46727Ko and 60027Ko ).
    The 2 files WinterdaleCitadel-SpikeTurretRing-5.2.stl (3118Ko) in zip are the same.
    WinterdaleCitadel-SpikeTurretRing doesn’t enter in others parts. Studs block access onWinterdaleCitadelTower.5.2-A.stl . WinterdaleCitadelTower.5.2-B.stl WinterdaleCitadelTower.5.2-C.stl…
    And borders are no so large to overflow on the floors below. I think there is a general prablem on this spike turret ring. After that, i think you must to enlarge WinterdaleCitadel_SpikeTurret_5.1.stl too.
    Thanks
    Best regards

    • Avatar

      Jo Boorer

      Currently being worked on and should be available next week

  5. Avatar

    Eurig

    Would it be possible to make this one in to a dice tower ass well? 😀

    • Sam Campbell

      Sam Campbell

      We can add it to the suggested list of updates.

  6. Avatar

    davemo (verified owner)

    I’m struggling to wrap my head around varying scales in the walls / citadel / barbican / castle etc. etc.

    Are they all compatible? I’m trying to line them up in Cura but the citadel and barbican appear to different heights, and how does this then relate to the war tower?

    • Sam Campbell

      Sam Campbell

      Winterdale 2 Barbican Hoarding, Turret, Castle gate are a similar scale and more refined brick style. The Winterdale Citadel War Towers, Walls and Castle parts are of a similar scale and brick style.
