$14.95

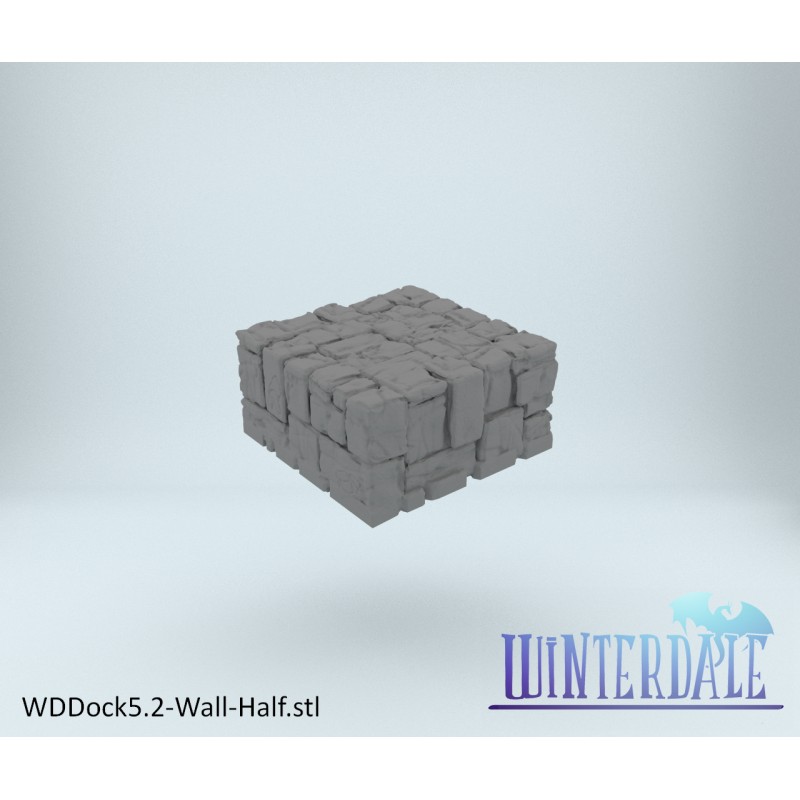

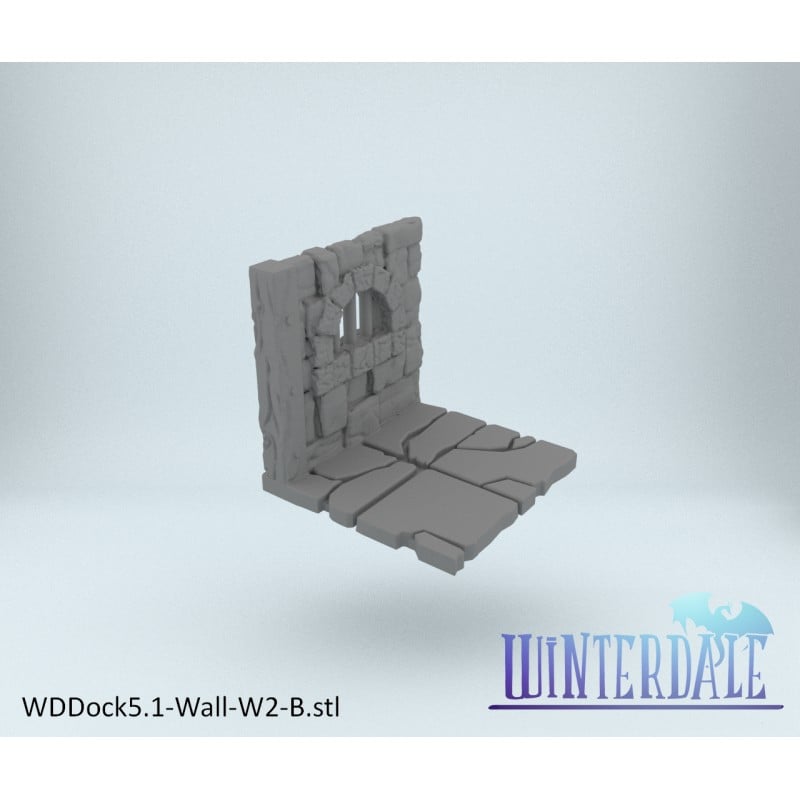

The Winterdale Docks is a modular building pack that will allow you to create a medieval style dock. The ‘Docks’ are constructed using 50mm (2″) square base blocks. Also included is a medieval crane, shipping crates and wagon.
You can also use these as dungeon tiles. They print quickly with no clean up and use minimum plastic.
The Winterdale buildings are designed to be glued and placed together.
This product is delivered as a .ZIP file pack containing 3d printer files (STL files) for use on a home 3D Printer.
The river that cuts through the heart of Winterdale is large and wide, allowing for larger ships than nearby towns. The docks of the city, ever bustling, keep Winterdale’s warehouses packed to the rafters.
Notes for Winterdale Docks:
| Recommended Printer | FDM or resin printer |
|---|---|
| Infill | 100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength |
| Layer Height | 0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended) |
| Supports | requires supports for resin printing, Prints without Supports |
| Scale | 28mm Wargames |
| Name | Millimeters mm | Ratio | Scale % |
|---|---|---|---|
| 10mm Wargames & N Scale | 10 | 1:159 | 35.7% |
| 15mm Wargames | 15 | 1:116 | 53.6% |
| HO Scale | 20 | 1:87 | 71.4% |
| OO Scale | 22 | 1:76 | 78.6% |
| 28mm Wargames | 28 | 1:62 | 100.0% |
| 32mm Heroic & OpenLOCK | 32 | 1:54 | 114.3% |
| - |
This article will show you how to use the OpenLOCK Magnetic Clip to build fully interchangeable dungeons with magnets. Once you’ve built a collection of these magnetic clips, you can swap and change dungeon layouts in no time. The Magnetic Clip is an OpenLOCK adapter option. It is interchangeable with other OpenLOCK clips but is… Read more
Horizontal OpenLOCK ports print with small supports to support the overhangs in the port mouth. You need to remove these supports post-printing before you can insert the OpenLOCK clips. We recommend using some needle-nosed pliers for this task. You can use the pliers to grip and twist the two supports in each port, breaking them… Read more
You must be logged in to post a question.
Gabriel –
Hi, could this product be used with openlock system like rampage and can you stack more than 2 floor?
Matthew Barker (verified owner) –
yes you can stack to tiles togeather however they don’t have a locking system as they are designed to be glued togeather
christian.schepers.1975 (verified owner) –

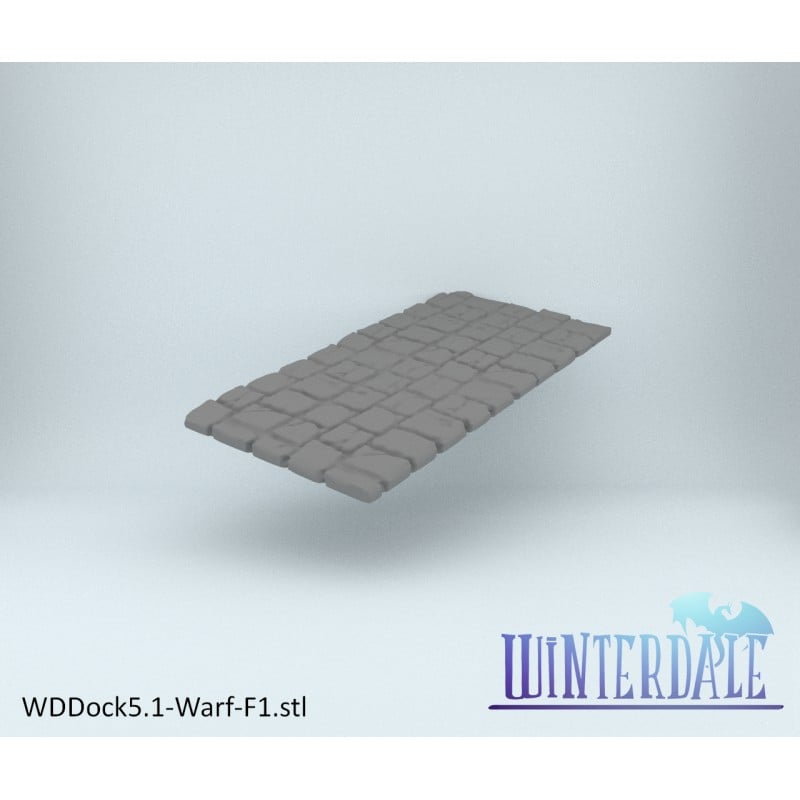

Hi! Great set, would it be possible to have a variant of Warf W4-A with the stone floor pattern rotated 90°? If you use the existing tile on two opposing edges the patterns don’t match the rest of the floor.
Sam Campbell –
Thanks for the suggestion. We’ll add it to the development queue.
jamesdbyer (verified owner) –
Is there a layout guide for this dock?
Sam Campbell –
The only layout guide is in the gallery pictures of the painted product.
