$5.95
The Satellite Installation is 100mm x 150mm and can be used as a standalone piece of scatter terrain, or placed on the top of a 100mm x 150mm building as a roof.
The radar will require supports touching the build plate when printing.
The rotation disk component is designed to sit under the radar hand so that you can make the radar movable.
The Satellite Installation is part of our Machines range.
This product is delivered as a .ZIP file pack containing 3d printer files (STL files) for use on a home 3D Printer.
Satellite Installations are useful for sending and receiving long-range communications across the galaxy.
Updates:

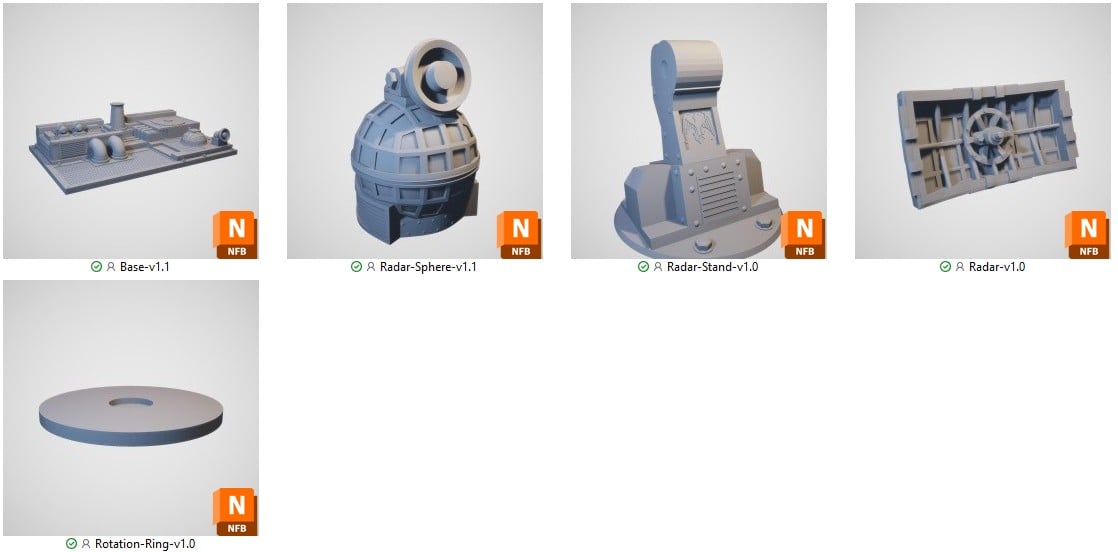

Notes for Satellite Installation:

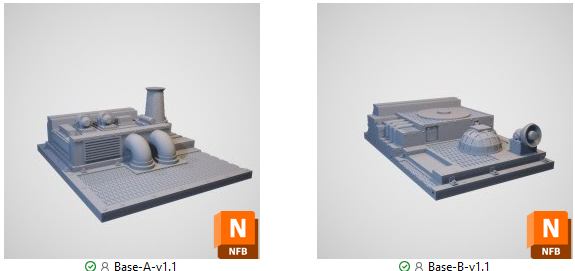

Reference for Small Printer
| Recommended Printer | FDM or resin printer |
|---|---|
| File Type | STL files in ZIP folder |
| Infill | 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength |
| Layer Height | 0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended) |
| Supports | requires supports for resin printing, Requires supports on some files |
| Dimensions | Dimensions and weights are available in the image gallery |
| Scale | 28mm Wargames |
| Name | Millimeters mm | Ratio | Scale % |
|---|---|---|---|
| 10mm Wargames & N Scale | 10 | 1:159 | 35.7% |
| 15mm Wargames | 15 | 1:116 | 53.6% |
| HO Scale | 20 | 1:87 | 71.4% |
| OO Scale | 22 | 1:76 | 78.6% |
| 28mm Wargames | 28 | 1:62 | 100.0% |
| 32mm Heroic & OpenLOCK | 32 | 1:54 | 114.3% |
| - |
You must be logged in to post a question.
kaotkbliss (verified owner) –
My printer bed is not large enough for the base of this model. Is it possible to have it split in half? If not I could try cutting it in half in Hexagon or something.
Matt Barker –
No Problem, Ill put this on the to-do list
Jo Boorer –
The Satellite Installation has been updated with a small printer option.
theartificersforge (verified owner) –
Hi guys,
The latticework effect on the Radar Sphere (both the separate piece and the one half embedded into the Base) does not appear to be touching the model, forming a kind of very thin ‘cage’ around it and therefore not printing very well… the end results are very messy!
I know this is an old model but could this be looked at please?
I can supply images to illustrate if that would be helpful?
Many thanks,
Jim
Joanne Boorer –
Hi, Could you please send your photo to [email protected] thanks.
