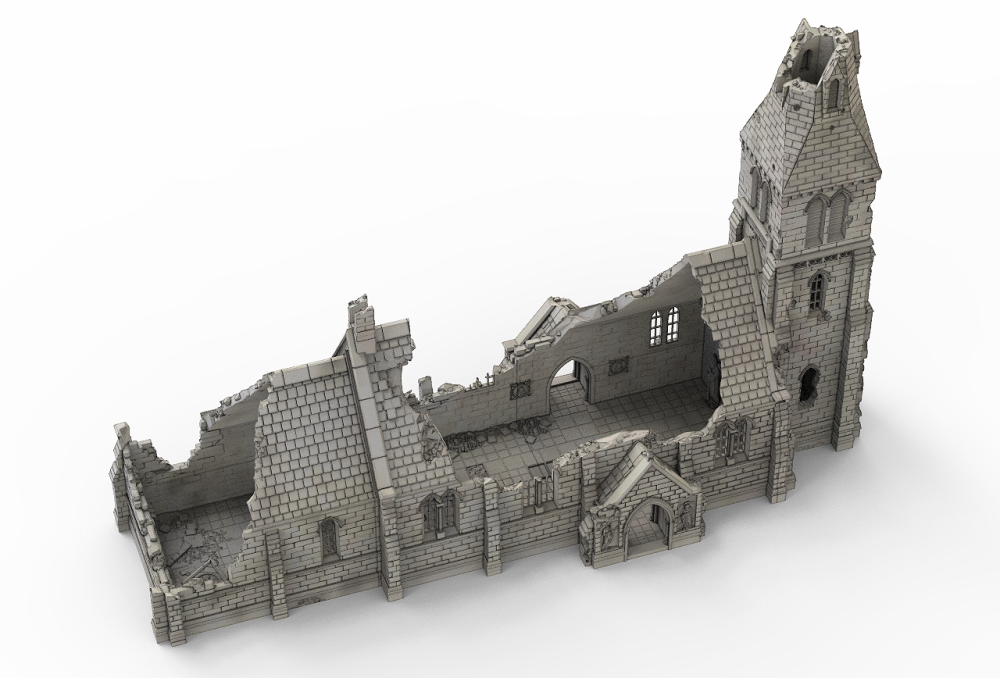

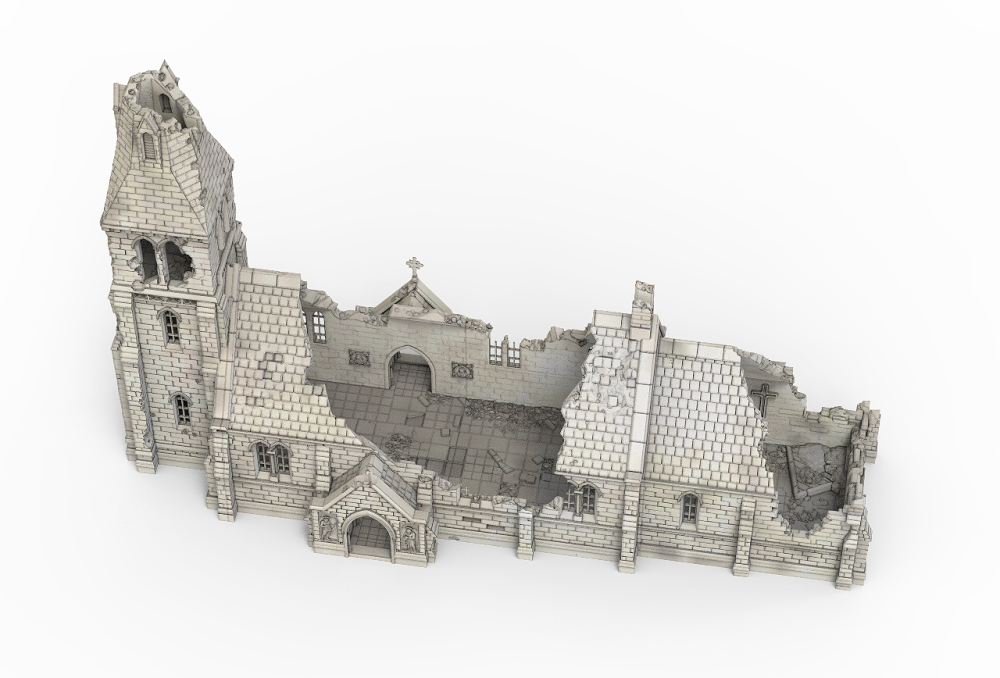

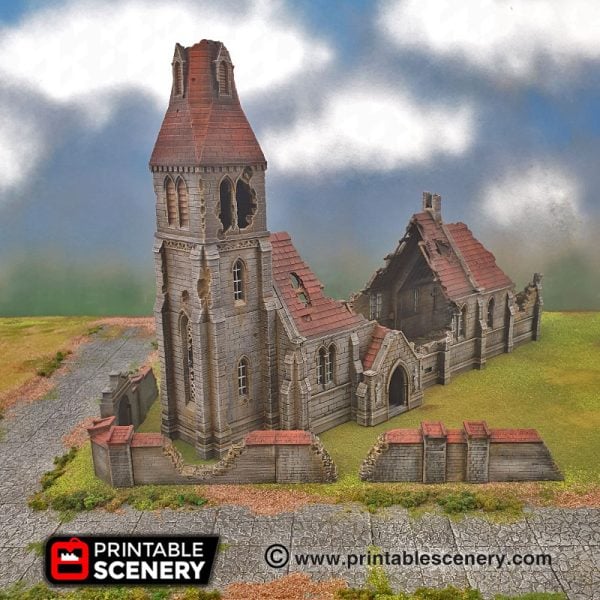

Name: Ruined Medieval Church
Brand: Bolt Action
Availability: InStock

Description

Sometimes, no matter how sacred or beautiful a building, churches became the victims of shells and bombs.

Updates:

12 June 2017 (version 1.3) Small mesh repair to Church-Ruin-Back-Roof-v1.3, Church-Ruin-Mid-A-Roof-v1.3, Church-Ruin-Mid-B-Roof-v1.3, Church-Ruin-Mid-B-v1.3, Church-Ruin-Tower-B-v1.3, Church-Ruin-Tower-C-v1.3.
17 July 2018 (version 1.5) Church Decor added
29 March 2019 (version 1.7) Locking pins and filament door connection have been added.
27 February 2025 (version 1.8) The model size was adjusted to fit the 28mm mini scale.

Notes for Ruined Medieval Church:

Right Click and “Save As” to download the reference sheet below.
Small Printer Reference sheet included in the zip file.
To make the hinges, use a small piece of unused filament. You can refer to this video for instructions.

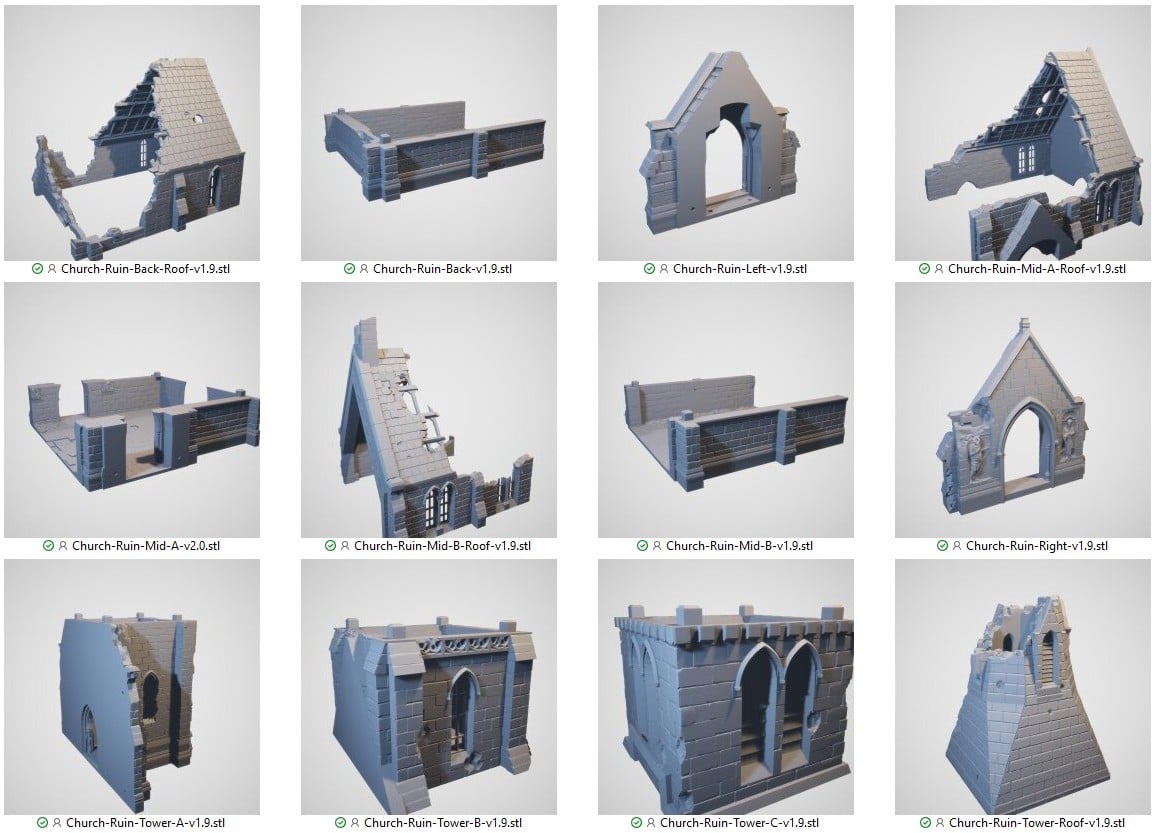

Medieval Church Ruin STL 3d print

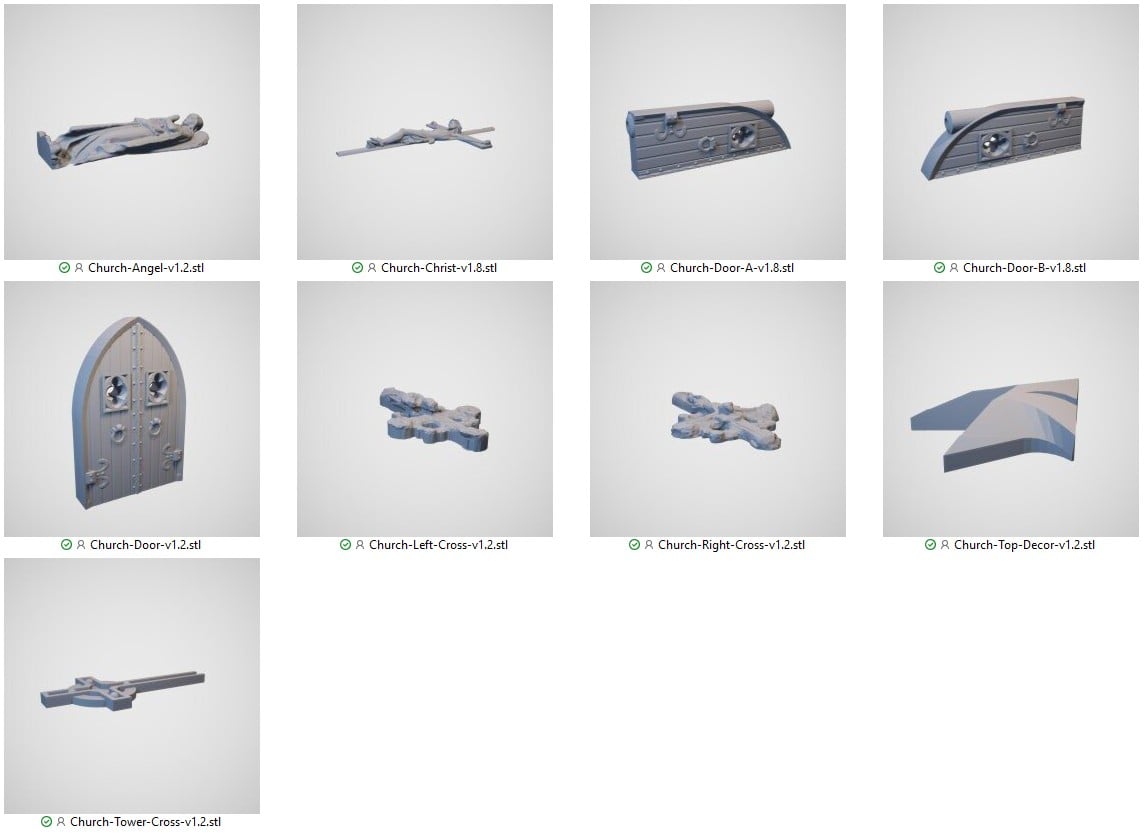

Church Decor Reference

Church Decor STL 3d print

Additional information

Recommended Printer	FDM or resin printer
Infill	100% for resin printing, 10% to 15% for most parts but increase to 20% for thin upright parts such as door frames for added strength
Supports	requires supports for resin printing, Prints without Supports
Layer Height	0.05 high quality on resin printers, .2 for Normal Quality .1 for High Quality (.2 Layer height is recommended)
Scale	28mm Wargames

Use this tool to find the percentage needed to scale your model up or down when printing.
The highlighted row shows the model's current scale and other rows show what percentage to print at to reach that scale.
To set a custom scale, use the calculator in the bottom row.

Name	Millimeters mm	Ratio	Scale %
10mm Wargames & N Scale	10	1:159	35.7%
15mm Wargames	15	1:116	53.6%
HO Scale	20	1:87	71.4%
OO Scale	22	1:76	78.6%
28mm Wargames	28	1:62	100.0%
32mm Heroic & OpenLOCK	32	1:54	114.3%
			-

mm is the height based on the measurement from the bottom of the feet to the eye height of the average human
Height is not the same as Base Size (A 28mm miniature will often have a 25mm round base)

13 questions for Ruined Medieval Church

Nick Simmerson (verified owner) – May 25, 2017

Tiled floor pattern won’t print at 0.2 layer height, do we have to print at 0.1 to get all the detail?
Matt Barker – May 25, 2017

Yes, it will only show .1 as they pattern is very fine. I should have made it .1mm deeper. I’ll add it to the fixes
Anton – February 18, 2018

Hi,

I was wondering, how big is the church, fully assembled? Love the model, but like to know the full measurements before buying. Thanks!
- Rex Foot (verified owner) – February 19, 2018

  It is about 40cm long by 11cm wide, but if you want it to be a centerpiece for Bolt Action it will probably need to be upscaled slightly.
jasper (verified owner) – June 10, 2018

what is the best way to Assembel this kit ?
i am half way printing looks real nice
- Jo Boorer (verified owner) – June 11, 2018

  Refer to Pic in gallery.
jasper (verified owner) – October 10, 2018

how much upscaling for bolt action.
printend 1 on 100% and its a little to small i think
- Sam Campbell – October 10, 2018

  Print at 110-120% for Bolt Action. It will be big though. You can use Sid for size comparison before you print. He’s free to download from here: https://www.printablescenery.com/product/sid-scale-25mm/
werner0nortje – May 23, 2020

Is the model as is when bought the correct size for B.A
- Sam Campbell – May 25, 2020

  Yes this is scaled for 28mm.
werner0nortje – May 26, 2020

What is the total gm useage to print the complete church
- Sam Campbell – May 26, 2020

  About 700gms at 10% infill.
werner0nortje – May 26, 2020

Thank you Sam. What is the complete print time on the model on 10% infill.
- Sam Campbell – May 28, 2020

  It’s about 5-6 days worth of printing.
jonnydw – February 13, 2021

What scale is the church/ruined church?
- Nicholas Jebson – February 15, 2021

  28mm in its base set-up, though if you want it for 15mm you just have to scale the model down in the slicer to 60%.
CristianSCooney – March 10, 2022

The “undestroyed” church has an optional back wall to make it shorter … does this destroyed version have the same option so the building can be swapped out when damaged?
- Mike (Printable Scenery) – March 11, 2022

  The midsection of this one is open if you don’t stick on the end, so it would work as a ruined version of the shorter church, though you might want to add some extra rubble so its not an entire open wall.
Phil Dodd (verified owner) – February 13, 2025

In October 2018 you said that the model needed to be scaled 110-120% for Bolt Action.
In May 2020 you said it is scaled for 28mm, which is Bolt Action scale.
Has the model been modified to print at the correct scale for Bolt Action as purchased?
merrick smith (verified owner) – February 18, 2025

Ive printed it as is and its too small for Bolt Action . figures will not fit through door height . I always scale my buildings by the door heith to be around 32 to 35mm. I reprinted at 120% and this was perfect. Printed from model STL purchased a few years ago.
- Joanne Boorer (verified owner) – February 18, 2025

  Hello Merrick, thank you for bringing this to our attention. I will update the model.
Phil Dodd (verified owner) – April 4, 2025

Hi, I’ve printed the church ruin and it looks awesome, thnaks. Now printing the walls and there are recesses in each end, I assume to put something in to fit them together. What do you suggest? Or is there something in the STL files that I’m missing?
Thanks
- Joanne Boorer (verified owner) – April 4, 2025

  Hi Phil, Can you please send a pic to [email protected] so we can assist you.
