Description

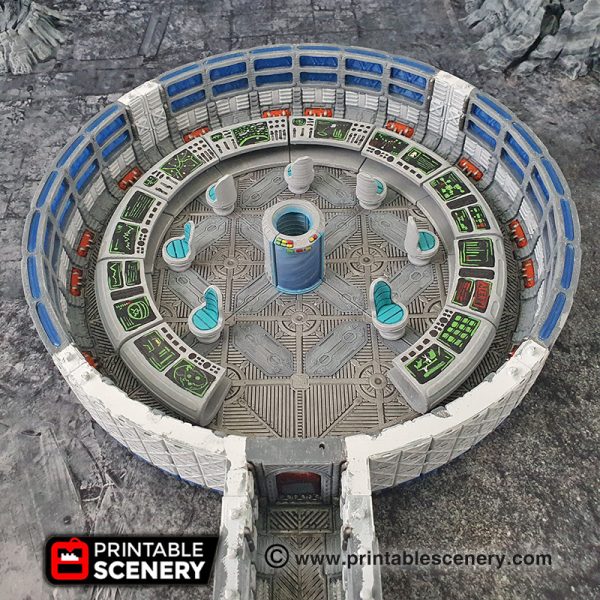

At the heart of an operations base a command center is situated from where the monitoring, administration and communication for the modules is controlled from.
To build with this expansion you will need the core Operating Base Modules set.
Updates:
- 6 November 2020 (version 1.2) Orientation of the Consoles has been changed to allow for easier FDM printing.
Notes:
- Right-click on the image below and “Save As” to download the reference sheet for this pack.

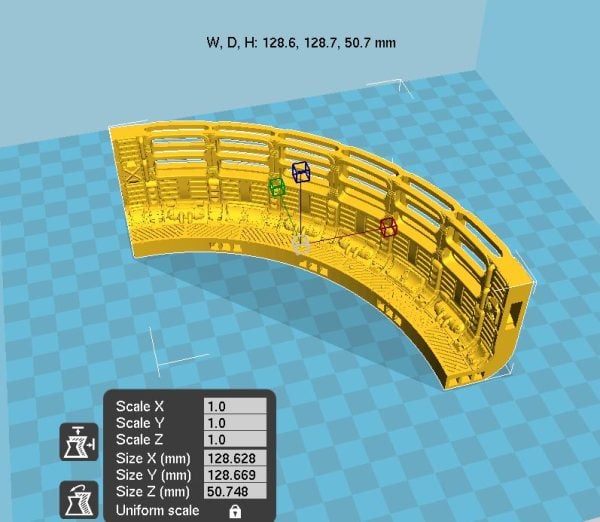

- Product measurements can be found in the image gallery.
- First published version 1.2
Locking Pin Reference
davidgrauscher (verified owner) –
Any recommendations on support settings for the consoles? I printed one (using Cura) with supports selected, but it was a bit of a challenge getting the support out (cracked the front, but in a way I can cover up and not worry about). Tried printing without as well, but that print failed.
Sam Campbell (verified owner) –
You can try printing the consoles on their ends, rotate on build plate and then lay flat.
Robert Crichton (verified owner) –
I’ve tried printing some consoles, they are already “on end” in the current download, but the ends are not *quite* parallel to the build plane (about a degree off), so the first layer in Cura is only a portion of the curve, with no plate contact on the ends of the “U”.
This could be a glitch in Cura, but thought you should know.
Nicholas Jebson –
Hey Robert, cheers for the info. We will investigate to make sure it is not the files.
