OpenLOCK Magnetic

FREE

“What could possibly be better than an OpenLOCK clip? Why, a magnetic OpenLOCK clip, of course!”

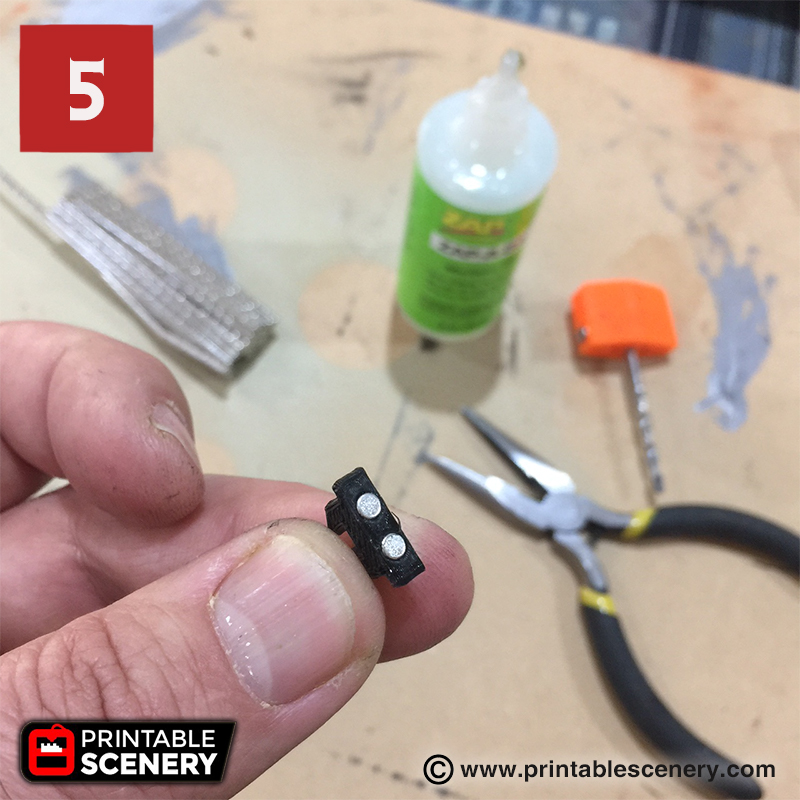

The OpenLOCK Magnetic is an OpenLOCK magnetic adapter clip. It is interchangeable with other OpenLOCK clips, but is cut in half with two holes for magnets to be inserted.

The two holes are designed to use 3mm x 4mm barrel magnets (1/8” x 1/8” will work too).

This product is compatible with all OpenLOCK tiles.

If you are a Kickstarter backer you must login to access your pledge

This product is delivered as a .ZIP file pack containing STL files for use on a home 3D Printer. The files are set to 28mm scale but can be rescaled before printing.

Description

Updates:

  • 11 February 2020 (version 5.4) Magnetic clip update to the 5.4 clip version.  The flat version has also been added for those who wish to scale it up and then drill their own holes.

Notes:

Below are links to where you can purchase the barrel magnets.

Q & A

  1. Avatar

    Nathan Turner (verified owner)

    Note: Aussie Magnets is 1/3rd cheaper for a batch of 100 magnets than magnet.com.au, and I’ve always found them to be fast shipping & great quality. https://aussiemagnets.com.au/product/–3-x—4mm-Rod-%28Rare-Earth%29–%28Pack-of-100%29.html

    • Avatar

      Rex Foot

      Good suggestion, i had added it to the list in the notes.

  2. Avatar

    Josephscalet (verified owner)

    I really like this design and I am going to make a bunch up once I get some magnets, however I was just curious why you went with 4mm deep slots as opposed to like 1 or 2 mm deep slots?

    Thank you

    • Sam Campbell

      Sam Campbell

      You can use magnets up to 4mm thick, these offer the best connection.

  3. Avatar

    Ryan Fitch (verified owner)

    Any chance of getting a sphere magnet clips similar to what infinitylock did?

    https://3dgeeks.2b.work/pages/view-thing.html?id=3101091

    • Sam Campbell

      Sam Campbell

      We can add this to the suggestion list for development queue.

  4. Avatar

    arthur.lawry

    How do you use these on standalone columns at wall junctions since you can’t fill both sides of a port? I imagine I could cut down a clip and glue it in place, or just use walls with connected columns/longer walls, but it seems like there would be no way to make sure your columns work in every configuration with just one clip per port

    • Sam Campbell

      Sam Campbell

      The columns can only ever have 2 clips inserted from any direction. An alternative would be to print with magnetic clips in the print or cut and glue them afterwards.

  5. Avatar

    vanerie (verified owner)

    Where did you find the 3 mm drill bit vise (the orange thing) ?

    • Sam Campbell

      Sam Campbell

      These you can usually get from your local hobby shop.

  6. Avatar

    Matthew Horbund (verified owner)

    Printed these along with the standard 5.4 clip and some “springy” clips i found on MMF. I cant get them into the parts to save my life. Either the clips snap or pieces of the floor/wall snap.

    I’m using a high quality HTPLA with 0.2mm layer height, 15% infill, 3 shells/perimeters, and 4 top/bottom layers as recommended for both clips and floors/walls.

    Am i supposed to cut vertical pieces out of the floor so the pegs fit in ok? Or should they just snap in (which for me they dont).

    • Avatar

      Nicholas Jebson

      Hey Matthew, You should just be able to remove the supports in the tiles and put the clips straight in. If you are having difficulty try re-sizing the clips to 95%, it will leave them a little wiggle room but they still hold well.

  7. Avatar

    brent (verified owner)

    I regret the dozens of hours I spent implementing these magnetic clips! If I were to do it again, I’d stick with the regular clips (which are a pain to snap in and pull apart at times) or try a single larger magnet alternative I’ve seen elsewhere (thingiverse I think) that doesn’t have the polarity issues.

    I built a massive (beautiful) Rampage castle with a pair of 3 story round towers, 4 walls, and a 3 story square keep. That said, I ran into many frustrating issues that was a nightmare, mainly related to these magnets. Some could have been avoided with better documentation, but really, I wouldn’t recommend these magnets to anyone.

    1. Polarity with the magnets causes multiple problems. With walls of a fully modular castle that connect inward and outward, the polarity of a corner column piece differs for each, making it frustrating to create and later find a corner that will work (you have to turn it various ways and upsidedown, then it may still be the wrong piece). I wanted magnets partly so my grandkids could easily build things, but this makes it next to impossible unless I can figure out a clear way to label them. Regular clips would be simpler if they have the strength to pull them out.
    2. Polarity makes it VERY easy to create clips with an inconsistent polarity. You’ll want to shoot yourself when you find you’ve snapped in 3 dozen pieces that all fit together fine but because of one mistake, all the pieces in pile A are incompatible with pile B. (A single magnet like https://www.thingiverse.com/thing:3809057 or https://www.thingiverse.com/thing:3865115 may be a better design? though not perfect. I’ve not tried them)
    3. Removing a magnetic clip is almost impossible with many pieces. I finally figured out how to drill a tiny starter hole in bad clips and screw in a hook, then use pliars to wrestle them out. Very time-consuming.
    4. Installing the magnets often requires burrowing them out with a hand drill. But fail to get it deep enough every single time, then the magnet sticks out by a millimeter and you’re screwed (or it just bulges anyway). After wasting hours, I finally bought 3x3mm magnets instead of the 3x4mm you seem to recommend. They seem to have the same strength but less issues getting the magnets to fit fully into the hole.
    5. I learned some tricks I wish were in a video tutorial or docs, but even with them, making these magnets is extremely time consuming. Consider only recommending a single large magnet system (with cautionary statements) and then having an option to buy them somewhere in bulk would be immensely helpful.
    6. If you’re building anything multi-level, then I’ve read the magnets aren’t strong enough to hold together reliability while using minis. I’ve not tested it yet, but I can see it being true, which is why I used clips for all the floors and their wall connections. But this pretty much negates the advantage of the magnets as so much of the castle still uses regular clips. I wish there were a solution to this.

    Let me know if you have any suggestions. In any case, people should have their eyes open before committing to this system.

    • Sam Campbell

      Sam Campbell

      Thanks for the feedback. With larger buildings the recommendation is to use OpenLOCK clips. Magnetic clips are more useful for doing quick rearrangements of dungeons for dungeon crawls.

  8. Avatar

    bizznbizz (verified owner)

    Hi Sam. Do you know if you’ve got any further on the ball-magnetic clip (as per Ryan’s suggestion above). It would be nice to have the option (even mix them, perhaps) and would have gone a long way to sorting out Brent’s issues (above). Thanks and keep up the good work. Mark.

    • Sam Campbell

      Sam Campbell (verified owner)

      I’ll add it to list of suggest improvements.

  9. Avatar

    t.andersson (verified owner)

    In what orientation do you print these? Lying down like normal clips, or standing up with the magnet holes towards the surface?

    • Sam Campbell

      Sam Campbell (verified owner)

      The default we provide in the zip is the recommended orientation.
